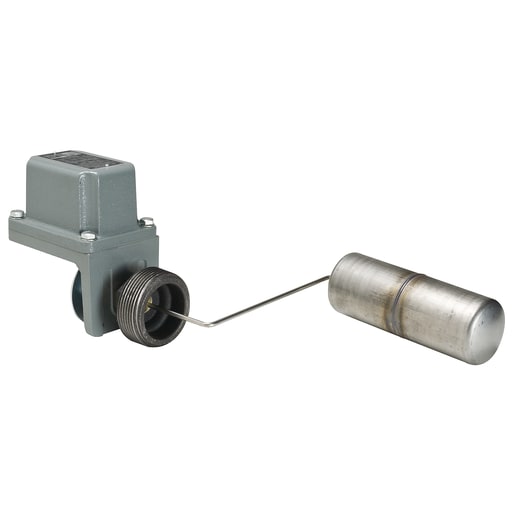

TESENSOR - SQD 9037HR31 Float switch, Square D
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901702313
Applications - 1.5 KW 2 HP)115 V AC, 1 PHASE-2.2 KW 3 HP)115 V AC, 3 PHASE-2.2 KW 3 HP)230 V AC, 1 PHASE-3.7 KW 5 HP)230 V AC, 3 PHASE-0.75 KW 1 HP)460 V AC, 3 PHASE-0.75 KW 1 HP)475 V AC, 3 PHASE-0.18 KW 0.25 HP)32 V DC-0.37 KW 0.5 HP)115 V DC-0.37 KW 0.5 HP)230 V DC,CLOSED TANK,FOR CLOSED TANK,LIQUID LEVEL CONTROL,POWER CIRCUIT
Catalog Number - 9037HR31
Country of Origin - Mexico
ERP_productname - SQD 9037HR31 FLOAT SWITCH 575VAC 1HP H +OPTIONS
Packaging
1 ea
EAN
00785901702313
Part #
155386
Catalog #
9037HR31
Commercial reference
9037HR31
12-Digit UPC:
785901702313
Applications:
1.5 KW 2 HP)115 V AC, 1 PHASE-2.2 KW 3 HP)115 V AC, 3 PHASE-2.2 KW 3 HP)230 V AC, 1 PHASE-3.7 KW 5 HP)230 V AC, 3 PHASE-0.75 KW 1 HP)460 V AC, 3 PHASE-0.75 KW 1 HP)475 V AC, 3 PHASE-0.18 KW 0.25 HP)32 V DC-0.37 KW 0.5 HP)115 V DC-0.37 KW 0.5 HP)230 V DC,CLOSED TANK,FOR CLOSED TANK,LIQUID LEVEL CONTROL,POWER CIRCUIT
Catalog Number:
9037HR31
Country of Origin:
Mexico
ERP_productname:
SQD 9037HR31 FLOAT SWITCH 575VAC 1HP H +OPTIONS
Enclosure:
NEMA 7/9
Enclosure Material:
Aluminum
Family Brand Name:
Square D
Mounting Type:
Screw-in Bushing
Number of Poles:
2 Pole
Sub Brand:
9037H
Tc Connection:
4 TERMINALS,SCREW-CLAMP TERMINALS 10 AWG
Type:
FLOAT SWITCH
Voltage:
575 VAC
SoneparProductId:
SKU_US_32259841
