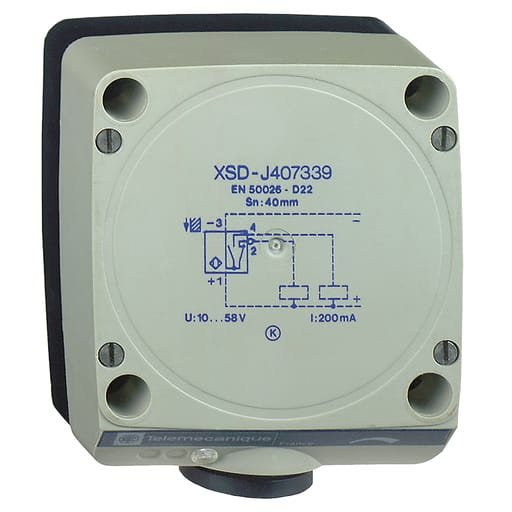

TESENSOR - SQD XSDJ407339 Inductive proximity

This product is part of the XS range, an offer of inductive proximity sensors. This inductive proximity sensor detects the presence of nearby objects without any physical contact. This general purpose inductive proximity sensor in XSD form 80mm x 80mm x 40mm design. It is non-flush mountable and has a frontal detection face. It supports 40mm nominal sensing distance and 1 normally open + 1 normally closed NPN discrete output. This rectangular low profile switch furnished with screw clamp terminals for electrical connection and Pg 13.5 cable gland tapped cable entry. It is an inductive proximity sensor with a rated supply voltage of 12V to 48V DC, switching frequency of ?50Hz DC and switching capacity ?200mA. It is an IP67 rated product. The enclosure is made of plastic. Its dimensions are 80mm (width) x 40mm (depth) x 100mm (height). Rectangular low-profile switch designed for very demanding industrial applications, such as railway, mobile equipment, lifts, escalators, hoisting, material handling/conveying/logistics, material working/machine tools and packaging. This product is certified by UL, CSA, CE and CCC. Plug-in body sensors enable the mechanical separation of the part containing all the necessary electronics and the base part comprising the electrical connections and fixing points. OsiSense XS inductive proximity sensors for non-contact sensing of metal objects up to 60mm. Inductive proximity sensors enable the detection, without physical contact, of metal objects.
