TESENSOR - SQD XT130B1FBL2 Telemecanique Capac

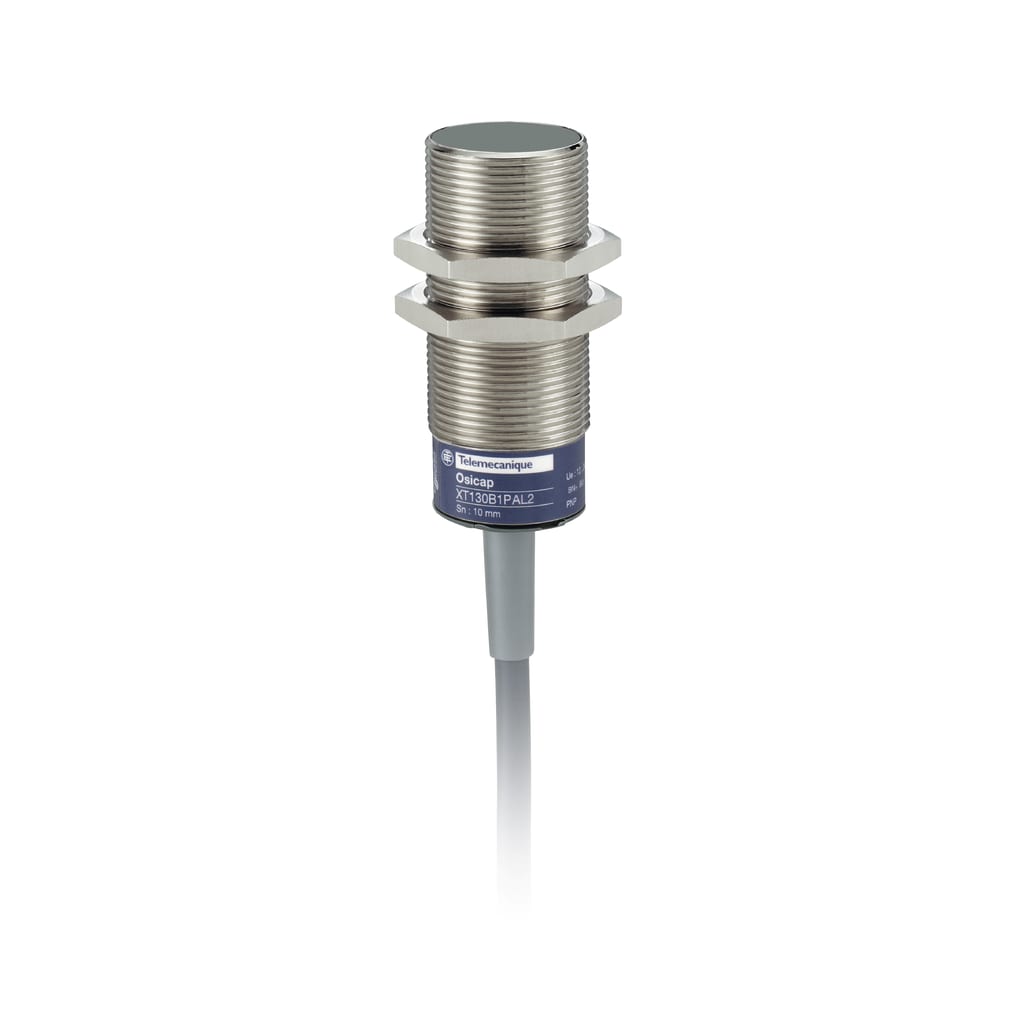

This product is part of the XS range, an offer of inductive proximity sensors. This capacitive proximity sensor in XT1 cylindrical M30 design. It has fixed body, flush mountable and frontal detection face. It supports 10mm nominal sensing distance and 1 NC 2-wire discrete output. It is furnished with 2m cable for electrical connection and M30 x 1.5 thread. It is a sensor with a rated supply voltage of 24V to 240V AC, 50Hz to 60Hz, a current consumption of <4mA and a maximum delay response of 30ms. It is an IP67 rated product. The enclosure is made of nickel plated brass. Its dimension is 70mm (Length) and weighs 0.27kg. It is suitable for railway, mobile equipment, lifts, escalators, hoisting, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries. This product is certified by CE and CETLus. It meets EN/IEC 60947-5-2 standards. It compliant with international standards, certifications in standard and increased range. Ex Osiprox, OsiSense XS and XT inductive and capacitive proximity sensors for non-contact sensing. Capacitive proximity sensors technology for non contact sensing of any material up to 20mm.
