TESENSOR - SQD XX930A3A1M12 Ultrasonic sensors
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901418917
Applications - GENERAL PURPOSE
Catalog Number - XX930A3A1M12
ERP_productname - SQD XX930A3A1M12 ULTRASONIC SENSOR 30MM DC 0-10V XX9
Enclosure - ULTEM
Packaging
1 ea
EAN
03389110704143
Part #
149657
Catalog #
XX930A3A1M12
Commercial reference
XX930A3A1M12
12-Digit UPC:
785901418917
Applications:
GENERAL PURPOSE
Catalog Number:
XX930A3A1M12
ERP_productname:
SQD XX930A3A1M12 ULTRASONIC SENSOR 30MM DC 0-10V XX9
Enclosure:
ULTEM
Enclosure Material:
ULTEM
Family Brand Name:
Osisense
Material:
Plastic
Sensing Range:
0.3-8 M,8-8 M ADJUSTABLE WITH TEACH PUSH-BUTTON
Sensor Type:
Ultrasonic sensor
Sub Brand:
XX9
Type:
CYLINDRICAL M30,ULTRASONIC SENSOR
SoneparProductId:
SKU_US_315963911

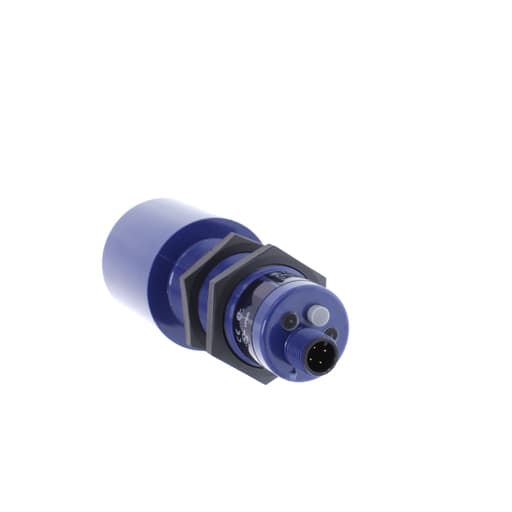

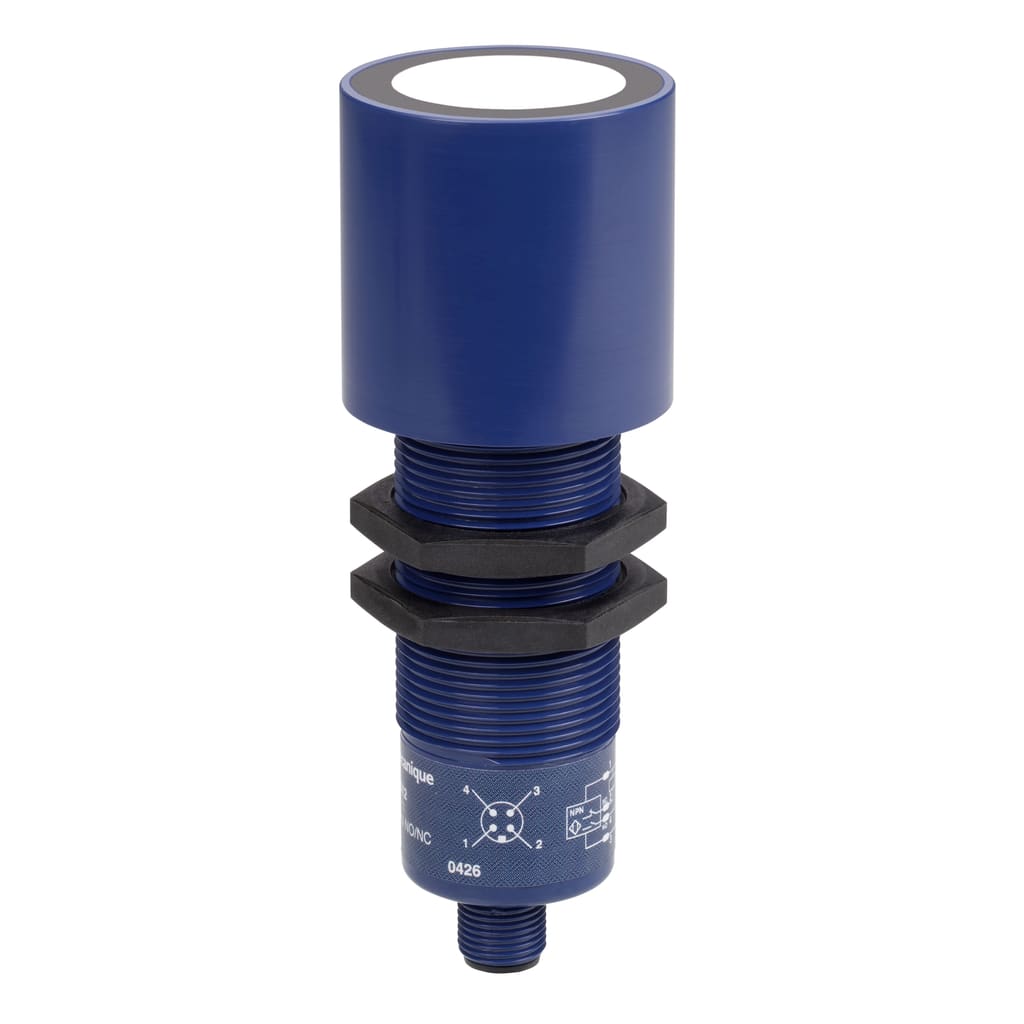

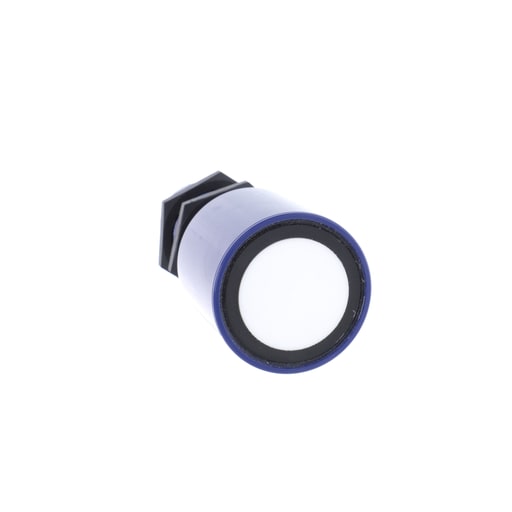

This cylindrical ultrasonic sensor has a ULTEM case. It has a supply voltage of 15V to 24V DC and an analog ouput of 0V to 10 V. This cylindrical ultrasonic distance sensor with analogue output, is mountable directly on a surface or bracket, thanks to its cylindrical thread and 2 fixing nuts. ULTEM® high strength case makes it ideal for high temperature environments. Multi-LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-20.C) and hot environments (+60.C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is IEC 60947-5-2 compliant.
