TESENSOR - Square D 9007CB32 600 Volt 10 Amp 2NO 2NC Plastic Heavy Duty Industrial Snap Switch

Essential specifications

12-Digit UPC - 785901726500
Actuator - Cast zinc;Plunger head
Amperage - 0.6 Amp 600 V AC, B600 NEMA RATING DESIGNATION-0.75 Amp 480 V AC, B600 NEMA RATING DESIGNATION-1.5 Amp 240 V AC, B600 NEMA RATING DESIGNATION-3 Amp 120 V AC, B600 NEMA RATING DESIGNATION-0.1 Amp 250 V DC-0.2 Amp 125 V DC,10 Amp
Catalog Number - 9007CB32
Country of Origin - Mexico

Packaging

1 ea

EAN

00785901726500

Part #

123810

Catalog #

9007CB32

Commercial reference

9007CB32

12-Digit UPC:

785901726500

Actuator:

Cast zinc;Plunger head

Amperage:

0.6 Amp 600 V AC, B600 NEMA RATING DESIGNATION-0.75 Amp 480 V AC, B600 NEMA RATING DESIGNATION-1.5 Amp 240 V AC, B600 NEMA RATING DESIGNATION-3 Amp 120 V AC, B600 NEMA RATING DESIGNATION-0.1 Amp 250 V DC-0.2 Amp 125 V DC,10 Amp

Catalog Number:

9007CB32

Country of Origin:

Mexico

Depths:

2.54 Inch

ERP_productname:

TES 9007CB32 SNAP SWITCH 600V 10AMP CB +OPTIONS

Enclosure:

NEMA 1 NEMA TYPE 250

Family Brand Name:

Telemecanique

Heights:

2-1/2 Inch

Material:

Metal

Number of Poles:

2 Pole

Size:

2.54 in

Sub Brand:

9007AO/CO

Tc Connection:

1-2 6 BINDER HEAD SCREW TERMINALS AWG 22...AWG 14)

Type:

Snap limit switch

Voltage:

600 Volt

Widths:

0.95 in

SoneparProductId:

SKU_US_26902405

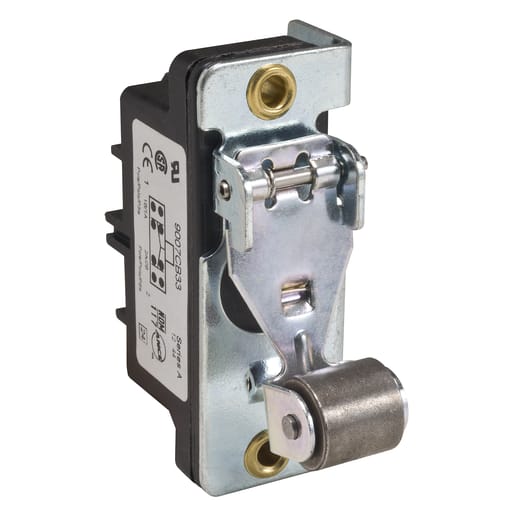

Industrial snap switches are used as the electrical contacts within many control circuits and products. This lever plunger snap switch has 0.22 inch wide roller. Snap switch has a left hand mounting bracket. This snap switch has two normally open and two normally closed snap action contacts. Contacts have an B600 inductive rating and 10A resistive rating. Snap switch also has 0.2A at 125VDC and 0.1A at 250VDC ratings. This snap switch is 2.50 inches tall, 0.95 inches wide and 2.54 inches deep. Snap switch is NEMA 1 and IP20 rated. Snap switch is UL component recognized and CSA certified. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
