TESENSOR - Square D XCKJ10559 240 VAC 10 Amp 1NO 1NC Lever Heavy Duty Limit Switch

Essential specifications

12-Digit UPC - 389110646040
Actuator - SPRING RETURN ROUND ROD LEVER THERMOPLASTIC ROUND ROD 6 MM, L = 200 MM
Amperage - 10 Amp
Applications - INDUSTRIAL
Catalog Number - XCKJ10559

Packaging

1 ea

EAN

03389110646047

Part #

117907

Catalog #

XCKJ10559

Commercial reference

XCKJ10559

12-Digit UPC:

389110646040

Actuator:

SPRING RETURN ROUND ROD LEVER THERMOPLASTIC ROUND ROD 6 MM, L = 200 MM

Amperage:

10 Amp

Applications:

INDUSTRIAL

Catalog Number:

XCKJ10559

Country of Origin:

Indonesia

Depths:

44 mm

ERP_productname:

TES XCKJ10559 LIMIT SWITCH 240VAC 10AMP XCKJ +OPTIONS

Enclosure:

NEMA 1/2/4/12 IP 66

Family Brand Name:

Telemecanique

Head Type:

Rotary head

Heights:

77-77 mm

Material:

Metal

Number of Poles:

2 Pole

Size:

1.73 in

Sub Brand:

XCKJ

Tc Connection:

SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA.

Type:

Limit switch

Voltage:

3 A 240 Volt, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 Volt, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A

Widths:

40 mm

SoneparProductId:

SKU_US_26374170

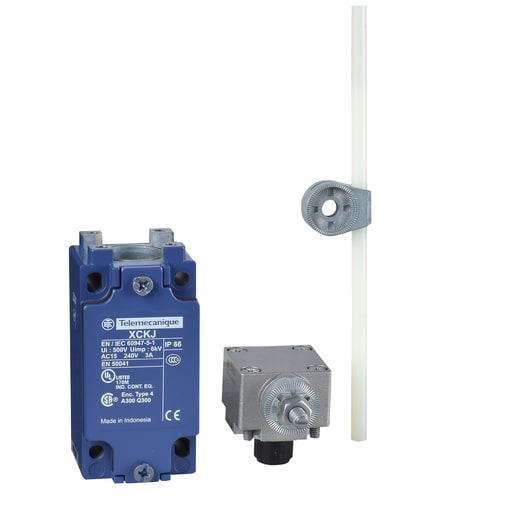

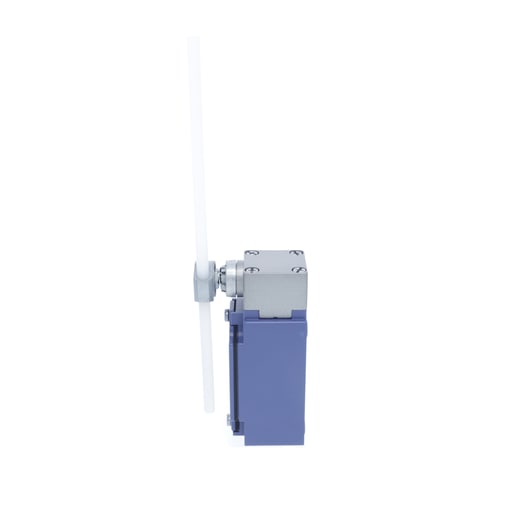

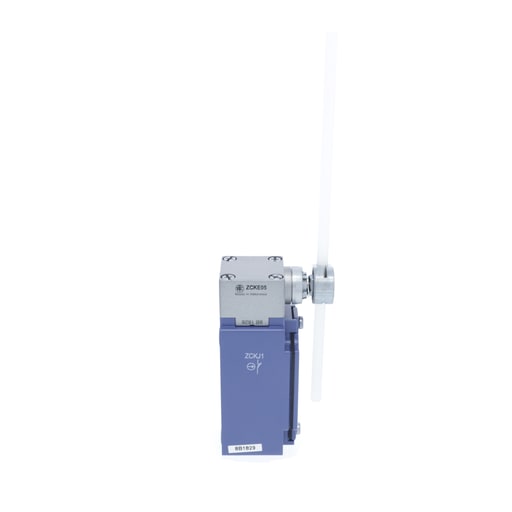

This XCKJ industrial format (EN 50041) limit switch has a thermoplastic rod round lever and a Zamak body. This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and a industrial CENELEC EN50041 form A format. It is IP66 and IK07 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508, BV, EAC standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
