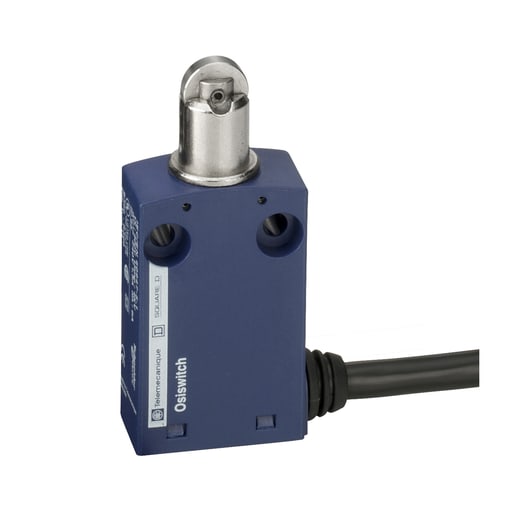

TESENSOR - SQUARED XCMN2102L3 Limit switch, Li

CopyCopy
TESENSOR - SQUARED XCMN2102L3 Limit switch, Li

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 338911092105

  • Actuator - SPRING RETURN ROLLER PLUNGER METAL

  • Applications - MINIATURE BASIC

  • Catalog Number - XCMN2102L3

  • Depths - 16 mm

Packaging

  • 1 ea

EAN

03389110921069

Part #

153403

Catalog #

XCMN2102L3

Commercial reference

XCMN2102L3

12-Digit UPC:

338911092105

Actuator:

SPRING RETURN ROLLER PLUNGER METAL

Applications:

MINIATURE BASIC

Catalog Number:

XCMN2102L3

Depths:

16 mm

ERP_productname:

TES XCMN2102L3 LIMIT SWITCH 240VAC 5A PLAST XCMN

Family Brand Name:

Telemecanique

Heights:

70.4-70.4 mm

Material:

Plastic

Number of Poles:

2 Pole

Size:

16 MM,30 MM,70.4-70.4 MM

Sub Brand:

XCMN

Tc Connection:

FIXED CABLE

Type:

LIMIT SWITCH,PLUNGER HEAD

Widths:

30 mm

SoneparProductId:

SKU_US_315973351

This product is part of the XC Standard range, an offer of limit switches. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 NC and 1 NO, form Zb, snap action contacts. It provides switch actuation of 30. cam. The limit switch has a spring return metal roller plunger and supports the lateral approach in 2 directions. The movement of operating head is linear. It is a limit switch with a rated operating current of 1.5A at 240V AC and 0.1A at 250V DC. It is furnished with fixed cable for electrical connection. It is an IP65 and IK04 rated product. This plunger head limit switch has a fixed body, made of plastic. Its dimensions are 30mm (width) x 16mm (depth) x 70.4mm (height). It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. This product is certified by CCC, CSA and UL. It meets IEC 60204-1, UL 508, EN 60947-5-1, EN 60204-1, CSA C22.2 No 14 and IEC 60947-5-1 standards. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
