TESENSOR - SQUARED XS512BLPBM12 Inductive prox

Essential specifications

Applications - Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other
Catalog Number - XS512BLPBM12
Current - 10 mA
ERP_productname - SQD XS512BLPBM12 INDUCTIVE PROXIMITY SENSORS XS, INDUCTIVE SENSOR XS5 M12, L62MM, BRASS, SN2MM, 12...48 VDC, M12
Enclosure - Nickel Plated Brass

Packaging

1 ea

EAN

03389119046596

Part #

265655

Catalog #

XS512BLPBM12

Commercial reference

XS512BLPBM12

Applications:

Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other

Catalog Number:

XS512BLPBM12

Current:

10 mA

ERP_productname:

SQD XS512BLPBM12 INDUCTIVE PROXIMITY SENSORS XS, INDUCTIVE SENSOR XS5 M12, L62MM, BRASS, SN2MM, 12...48 VDC, M12

Enclosure:

Nickel Plated Brass

Enclosure Material:

Brass

Family Brand Name:

Telemecanique

Length:

62 mm

Material:

Metal

Sensing Range:

2 MM,> 0...0.1 IN (> 0...2.5 MM)

Sub Brand:

XS5

Type:

IEC Cylindrical Fuse-Links

SoneparProductId:

SKU_US_353717744

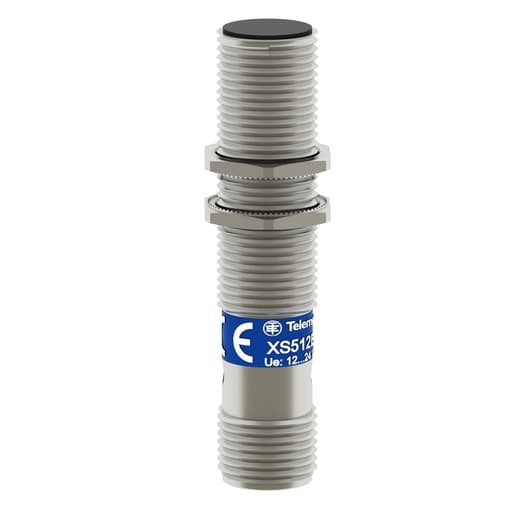

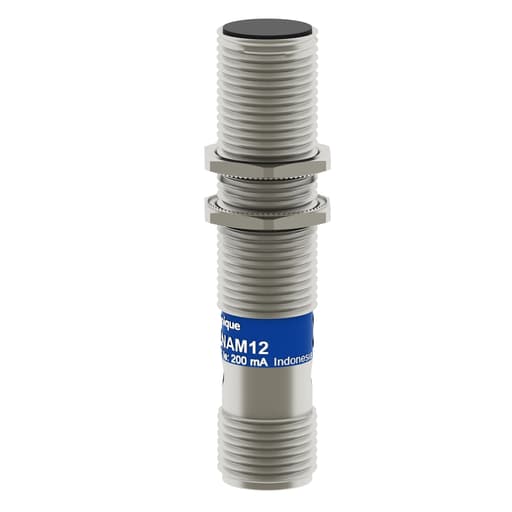

This XS cylindrical (M12 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 48V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65, IP68 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25.C) and hot environments (+70.C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is CCC, CSA, UL certified.
