TESENSOR - SQUARED XS7F1A1NAL2 Inductive proxi
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901562443
Applications - -
Catalog Number - XS7F1A1NAL2
Current - 10 mA
Depths - 8 mm
Packaging
1 ea
EAN
03389110139709
Part #
229617
Catalog #
XS7F1A1NAL2
Commercial reference
XS7F1A1NAL2
12-Digit UPC:
785901562443
Applications:
-
Catalog Number:
XS7F1A1NAL2
Current:
10 mA
Depths:
8 mm
ERP_productname:
TES XS7F1A1NAL2 PROXIMITY SENSOR SZ F DC NPN XS7
Enclosure:
PBT
Enclosure Material:
PBT
Family Brand Name:
Telemecanique
Heights:
32 mm
Material:
Plastic
Sensing Range:
> 0.16...0.31 IN (> 4...8 MM)
Size:
8 mm
Sub Brand:
XS7
Type:
Flat form 15 x 32 x 8;Inductive proximity sensor
Widths:
15 mm
SoneparProductId:
SKU_US_317521596

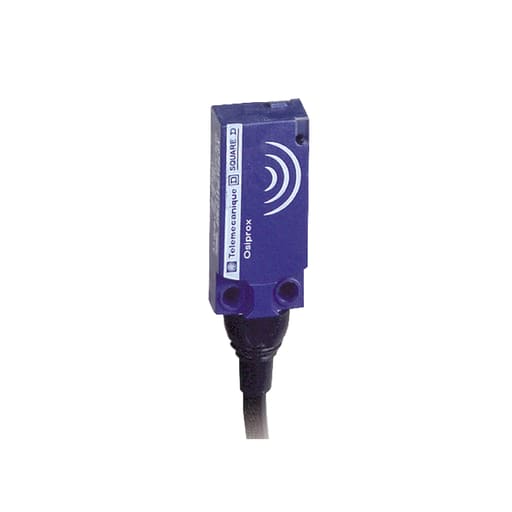

This XS flat (15 x 32 x 8 mm) inductive proximity sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This general purpose rectangular inductive proximity sensor is mountable directly on a surface, thanks to its 2 screw fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. IP68 protection makes this product ready for the harshest environments. It can operate in very cold (-25.C) and hot environments (+70.C). It features double insulation for better people and system protection from electrical shocks. It is C-Tick, CSA, UL certified.
