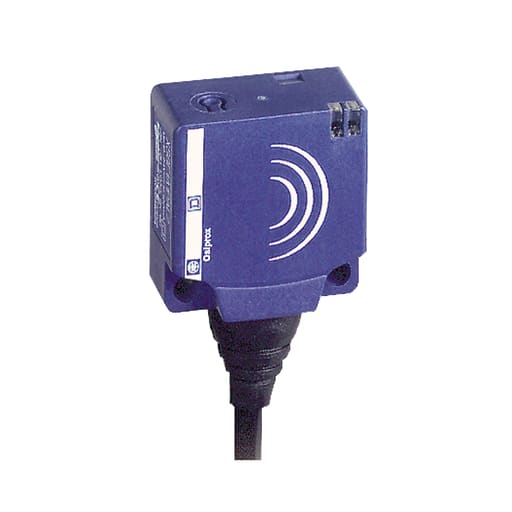

TESENSOR - SQUARED XS8E1A1NAL2 Inductive proxi

Essential specifications

Applications - Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other
Catalog Number - XS8E1A1NAL2
Current - 10 mA
Depths - 13 mm
ERP_productname - TES XS8E1A1NAL2 PROXMITY SENSOR SZ E DC PNP XS8

Packaging

1 ea

EAN

03389110141948

Part #

269950

Catalog #

XS8E1A1NAL2

Commercial reference

XS8E1A1NAL2

Applications:

Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other

Catalog Number:

XS8E1A1NAL2

Current:

10 mA

Depths:

13 mm

ERP_productname:

TES XS8E1A1NAL2 PROXMITY SENSOR SZ E DC PNP XS8

Enclosure:

PBT Polyester

Enclosure Material:

PBT

Family Brand Name:

Telemecanique

Heights:

26 mm

Material:

Plastic

Sensing Range:

10 MM FLUSH MOUNTABLE-15 MM NON FLUSH MOUNTABLE,> 0.31...0.59 IN (> 8...15 MM)

Sensor Type:

Inductive proximity sensor

Size:

13 mm

Sub Brand:

XS8

Type:

Flat Turn, Heavy Duty

Widths:

26 mm

SoneparProductId:

SKU_US_390529212

This XS flat (26 x 26 x 13 mm) inductive proximity sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 2 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. IP68 protection makes this product ready for the harshest environments. It can operate in very cold (-25.C) and hot environments (+70.C). It features double insulation for better people and system protection from electrical shocks. Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified.
