TESENSOR - SQUARED XUSL4E14F061N Safety light

Essential specifications

12-Digit UPC - 785901561033
Applications - For finger protection
Catalog Number - XUSL4E14F061N
Current - 42 mA
ERP_productname - TES XUSL4E14F061N TYPE 4 14 MM RESOLUTION 610 MM PROT HT

Packaging

1 ea

EAN

03389119618212

Part #

187614

Catalog #

XUSL4E14F061N

Commercial reference

XUSL4E14F061N

12-Digit UPC:

785901561033

Applications:

For finger protection

Catalog Number:

XUSL4E14F061N

Current:

42 mA

ERP_productname:

TES XUSL4E14F061N TYPE 4 14 MM RESOLUTION 610 MM PROT HT

Family Brand Name:

Telemecanique

Material:

Aluminium Casing,Polycarbonate Front Panel,Polypropylene End Caps

Output Current:

0.4 A SAFETY OUTPUTS OSSD

Output Voltage:

24 V

Sub Brand:

XUSL4E

Tc Connection:

1 MALE CONNECTOR M12 5 PINS TRANSMITTER-1 MALE CONNECTOR M12 8 PINS RECEIVER

Type:

Safety light curtain type 4

SoneparProductId:

SKU_US_315738926

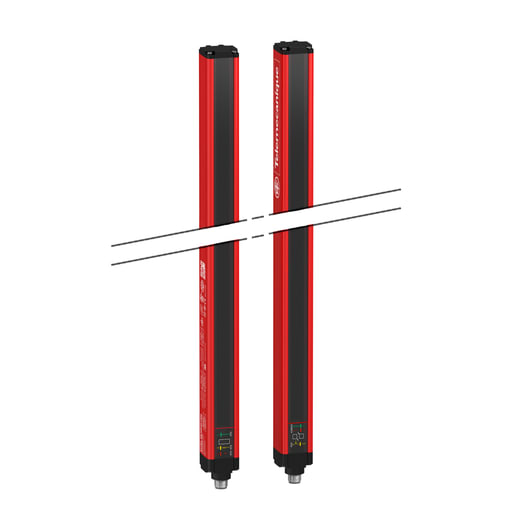

This XUSL4E Type 4 Safety Light Curtain is designed for finger detection of operator in the vicinity of hazardous machinery. Its transmitter-receiver system creates 60 light beams with a protected height of 610mm. Its PFHD reliability data is 1.75 x 10??. It has an aluminum case and its integral LEDs offer a local Signaling for clearly display of device's status. It can be used as standalone sensor (i.e without safety control unit) or in association with an appropriate safety control unit. It has 2 NO Solid State PNP safety outputs (OSSDs) and meets the requirements of category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508 and Type 4 in compliance with EN/IEC 61496-1, EN/IEC 61496-2. Its operating temperature range is -20.C to +55.C and the sensing distance is 0m to 3m or 1m to 6m selectable by wiring.
