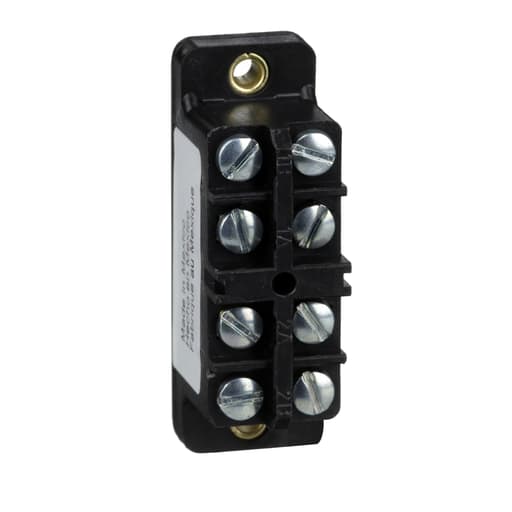

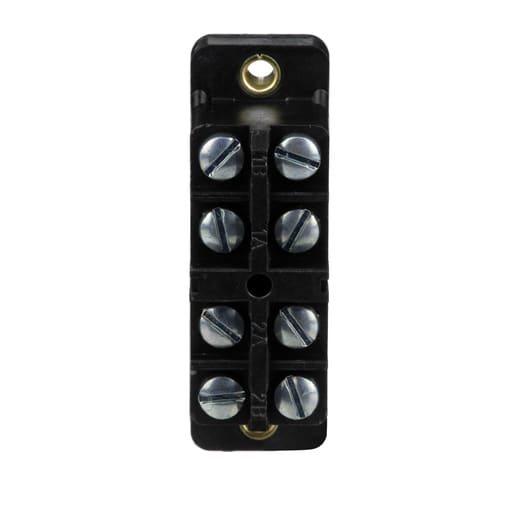

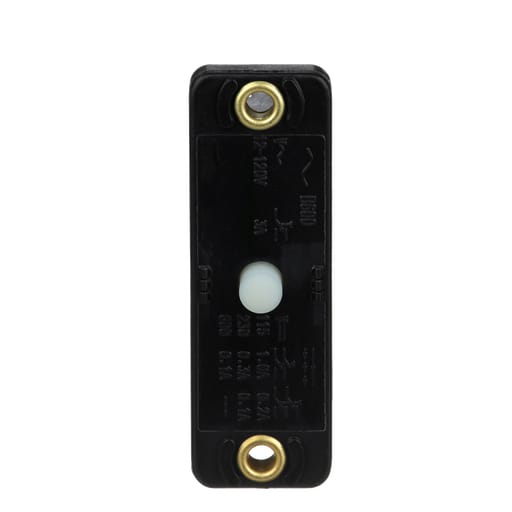

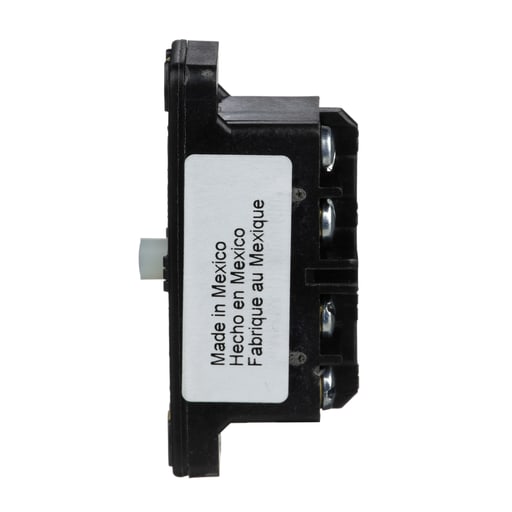

TESENSOR - TEC 9007CO3 snap switch, 9007CO, plunger head, 2 NO and 2 NC contact, 3 A at 120 VAC, 600 V maximum

This product is part of the 9050 A/H Pneumatic Timers range, an offer of limit switches. An adjustable actuator is recommended. If a non-adjustable actuator is used, a resilient type or a mechanical stop should be used to prevent bottoming of button mechanism. The minimum recommended overtravel in both trip and reset directions is 0.015 in. (0.38 mm) on adjustable actuator switches. Nonadjustable actuator snap switches have a total maximum travel differential limit of plus 0.030 in. (0.76 mm). Most snap switches are UL component recognized and CSA certified. It is an IP20 and NEMA 1 rated product. This plunger head limit switch has a fixed body which is made of cast zinc. Its dimensions are 0.83inch (width) x 1.14inch (depth) x 2.5inch (height) and weighs 0.5lb. It is suitable for material working, packaging, materials handling, conveying, food and beverage, oil, gas, crane, hoisting, mill, foundry, mining and mineral construction. This product is certified by CSA. It complies with UL 508 standards.
