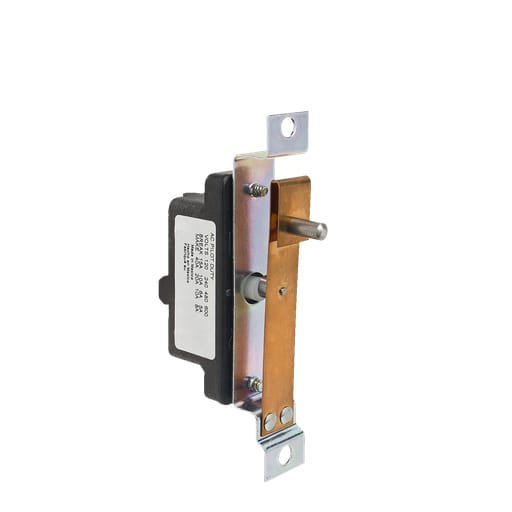

TESENSOR - TEC 9007CO6 Snap basic limit switch, 9007, plunger, 2 NO, plug in
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901809517
Actuator - Cast zinc;Plunger head
Amperage - 0.1 Amp 600 V DC, Q600 NEMA RATING DESIGNATION-0.6 Amp 600 V AC, B600 NEMA RATING DESIGNATION-0.75 Amp 480 V AC, B600 NEMA RATING DESIGNATION-1.5 Amp 240 V AC, B600 NEMA RATING DESIGNATION-3 Amp 120 V AC, B600 NEMA RATING DESIGNATION-0.3 Amp 250 V DC, Q600 NEMA RATING DESIGNATION-1 Amp 125 V DC, Q600 NEMA RATING DESIGNATION,10 Amp
Catalog Number - 9007CO6
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901809517
Part #
138329
Catalog #
9007CO6
Commercial reference
9007CO6
12-Digit UPC:
785901809517
Actuator:
Cast zinc;Plunger head
Amperage:
0.1 Amp 600 V DC, Q600 NEMA RATING DESIGNATION-0.6 Amp 600 V AC, B600 NEMA RATING DESIGNATION-0.75 Amp 480 V AC, B600 NEMA RATING DESIGNATION-1.5 Amp 240 V AC, B600 NEMA RATING DESIGNATION-3 Amp 120 V AC, B600 NEMA RATING DESIGNATION-0.3 Amp 250 V DC, Q600 NEMA RATING DESIGNATION-1 Amp 125 V DC, Q600 NEMA RATING DESIGNATION,10 Amp
Catalog Number:
9007CO6
Country of Origin:
Mexico
Depths:
1.14 Inch
ERP_productname:
TES 9007CO6 SNAP SWITCH 600V 10AMP CO +OPTIONS
Enclosure:
NEMA 1 NEMA TYPE 250
Family Brand Name:
Telemecanique
Heights:
2-1/2 Inch
Material:
Metal
Number of Poles:
2 Pole
Size:
1.14 in
Sub Brand:
9007AO/CO
Tc Connection:
1...2 CABLES FOR 6 BINDER HEAD SCREW TERMINALS (AWG 22...AWG 14)
Type:
Snap basic limit switch
Widths:
0.83 in
SoneparProductId:
SKU_US_26904402
