TESENSOR - TEC 9007HA8 NEMA limit switch, 9007C, adjustable length lever arm, bendable, 0.625 inch nylon roller, 0.25 inches wide
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901752912
Actuator - CAST ZINC SPRING RETURN ADJUSTABLE BENDABLE ROLLER LEVER 0.88-4 IN - -
Applications - 9007AW-9007C,9007C,HEAVY DUTY
Catalog Number - 9007HA8
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901752912
Part #
176869
Catalog #
9007HA8
Commercial reference
9007HA8
12-Digit UPC:
785901752912
Actuator:
CAST ZINC SPRING RETURN ADJUSTABLE BENDABLE ROLLER LEVER 0.88-4 IN - -
Applications:
9007AW-9007C,9007C,HEAVY DUTY
Catalog Number:
9007HA8
Country of Origin:
Mexico
ERP_productname:
TES 9007HA8 LIMIT SWITCH LEVER ARM AW+C +OPTIONS
Family Brand Name:
Telemecanique
Size:
0.88 TO 4.00 INCHES 0.63 X 0.25 INCHES
Sub Brand:
9007C
Type:
LIMIT SWITCH LEVER
SoneparProductId:
SKU_US_69983956

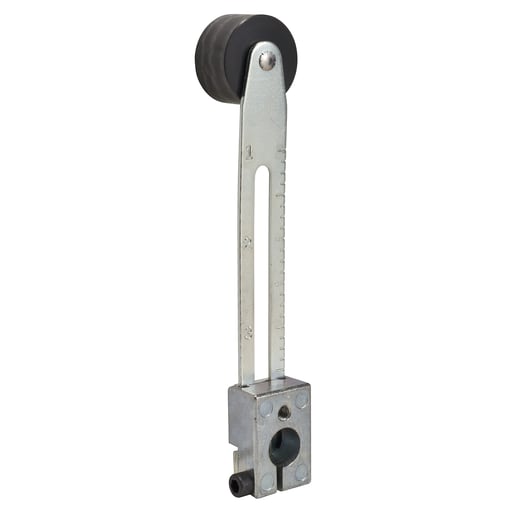

These industrial heavy duty limit switches are applied in almost any environments. This adjustable limit switch lever arm is used on any of the 9007C rotary head limit switches. This lever arm is adjustable from 0.875 inches to 4 inches long. This roller arm is bendable. This lever arm has a nylon roller. The lever arm roller is 0.625 inch in diameter and 0.25 inch wide. This roller lever has spring return operator, made of cast zinc. Its dimensions are 16mm (diameter) x 6.35mm (width). The lever length is 101.6mm. It weighs 0.05kg. It is associated with complete products such as 9007C and 9007AW. The associated heads are 9007B, 9007T10, 9007N, 9007C, 9007A and 9007T5. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
