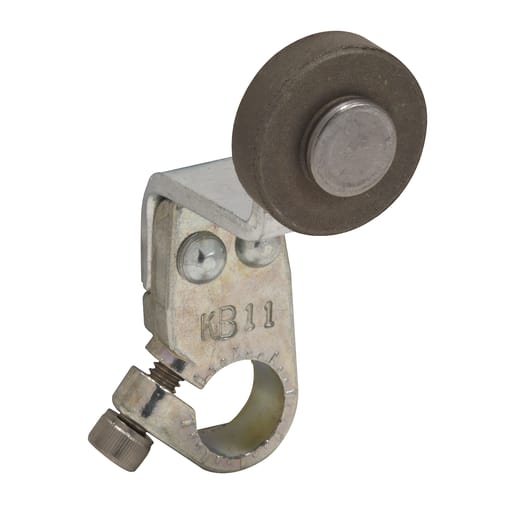

TESENSOR - TEC 9007KB11 NEMA limit switch, 9007C, cast zinc offset lever arm, 1.50 inches long, 0.75 inch diameter, 0.25 inch wide
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901829904
Actuator - CAST ZINC SPRING RETURN ROLLER LEVER 1.5-1.5 IN 0.88 IN -
Applications - 9007AW-9007C,9007C,HEAVY DUTY
Catalog Number - 9007KB11
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901829904
Part #
142668
Catalog #
9007KB11
Commercial reference
9007KB11
12-Digit UPC:
785901829904
Actuator:
CAST ZINC SPRING RETURN ROLLER LEVER 1.5-1.5 IN 0.88 IN -
Applications:
9007AW-9007C,9007C,HEAVY DUTY
Catalog Number:
9007KB11
Country of Origin:
Mexico
ERP_productname:
TES 9007KB11 LIMIT SWITCH LEVER ARM AW+C +OPTIONS
Family Brand Name:
Telemecanique
Size:
1.50 INCHES 0.75 X 0.25 INCHES
Sub Brand:
9007C
Type:
Limit switch lever
SoneparProductId:
SKU_US_25464164
These industrial heavy duty limit switches are applied in almost any environments. This offset limit switch lever arm is used on any of the 9007C rotary head limit switches. This offset cast zinc lever arm is 1.50 inches long. This lever arm has an offset of 0.875 inches. This lever arm has a standard roller that is hardened oil impregnated sintered iron. The lever arm roller is 0.75 inch in diameter and 0.25 inch wide. This roller lever has spring return operator which is made of cast zinc. It weighs 0.05kg. It is associated with complete products such as 9007C and 9007AW. The associated heads are 9007T5, 9007N, 9007A, 9007T10, 9007B and 9007C. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
