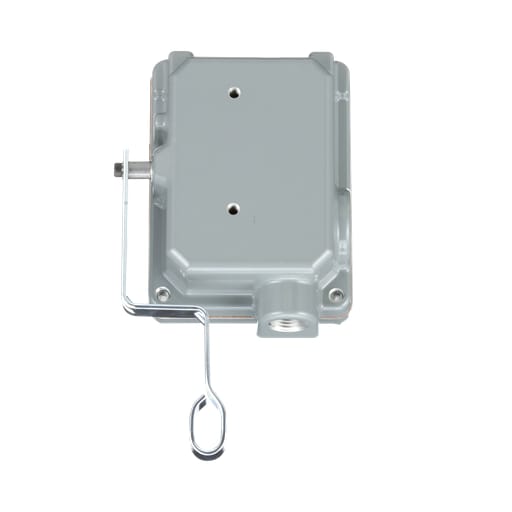

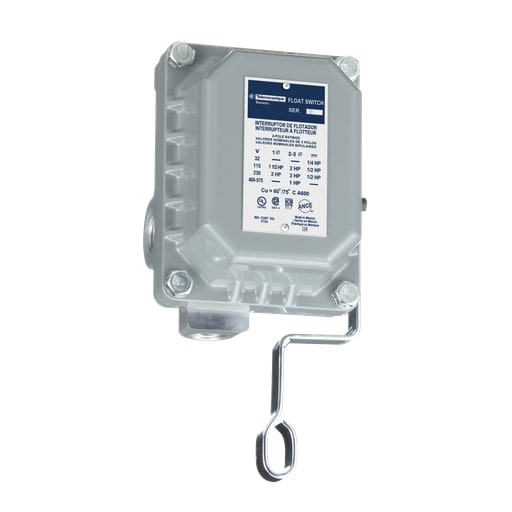

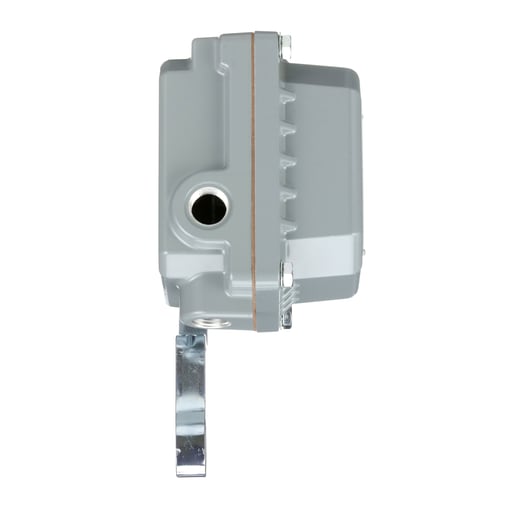

TESENSOR - TEC 9036DW31 float switch, open tank, NEMA 4, pedestal mounted, 2 NC, DPST DB contacts, 1 HP

9036 NEMA open tank float switches are lever operated and designed for open tank applications. This float switch has 2 normally closed, snap action, DPST-DB (double pole single throw, double break) form YY contacts. These switches can be floor mounted or pedestal mounted using mounting plate 9049UMS1. These float switches are available in NEMA 1, NEMA 4, or NEMA 7 and 9 enclosures. 9036 open tank float switches are UL Listed and CSA certified. Offers electrical durability of 100 cycles and mechanical durability of 300 cycles. The enclosure is made of cast aluminium. It weighs 4.17lb. It is suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centres, complex and special machines. It is a NEMA 4 rated product. This product is certified by CE, CSA and UL. Meets UL 508 standards. Float switch is lever operated and designed for open tank applications. This switch can be pedestal mounted using mounting plate 9049UMS1.
