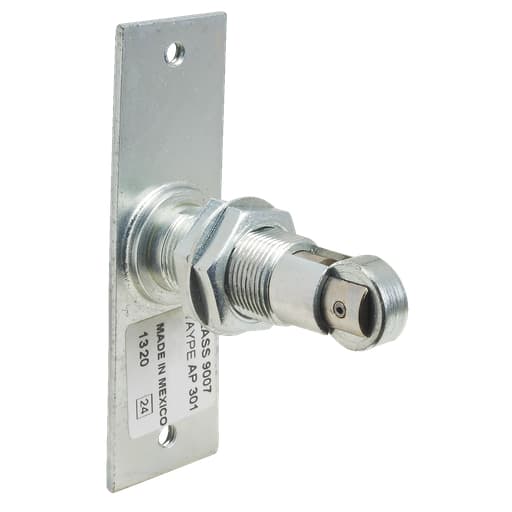

TESENSOR - TEC Sensors 9007AC1 Snap limit switch, 9007, 600 VAC 15amp AC +options
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901758921
Actuator - Cast zinc;Plunger head
Amperage - 15 Amp,5 Amp 600 V AC, A600 NEMA RATING DESIGNATION-6 Amp 480 V AC, A600 NEMA RATING DESIGNATION-10 Amp 240 V AC, A600 NEMA RATING DESIGNATION-15 Amp 120 V AC, A600 NEMA RATING DESIGNATION-0.1 Amp 250 V DC-0.25 Amp 125 V DC
Catalog Number - 9007AC1
Depths - 1.91 Inch
Packaging
1 ea
EAN
00785901758921
Part #
219853
Catalog #
9007AC1
Commercial reference
9007AC1
12-Digit UPC:
785901758921
Actuator:
Cast zinc;Plunger head
Amperage:
15 Amp,5 Amp 600 V AC, A600 NEMA RATING DESIGNATION-6 Amp 480 V AC, A600 NEMA RATING DESIGNATION-10 Amp 240 V AC, A600 NEMA RATING DESIGNATION-15 Amp 120 V AC, A600 NEMA RATING DESIGNATION-0.1 Amp 250 V DC-0.25 Amp 125 V DC
Catalog Number:
9007AC1
Depths:
1.91 Inch
ERP_productname:
TES 9007AC1 SNAP SWITCH 600VAC 15AMP AC +OPTIONS
Enclosure:
NEMA 1 NEMA TYPE 250
Family Brand Name:
Telemecanique
Heights:
3.88 Inch
Material:
Metal
Mounting Type:
Cabinet Door Type
Number of Poles:
1 Pole
Size:
1.91 in
Sub Brand:
9007AO/CO
Tc Connection:
1-2 6 BINDER HEAD SCREW TERMINALS AWG 22...AWG 14)
Type:
Snap limit switch
Voltage:
600 Volt
Widths:
0.83 in
SoneparProductId:
SKU_US_26847473
