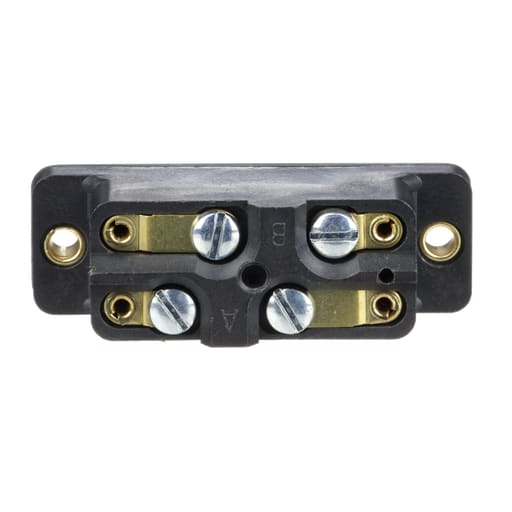

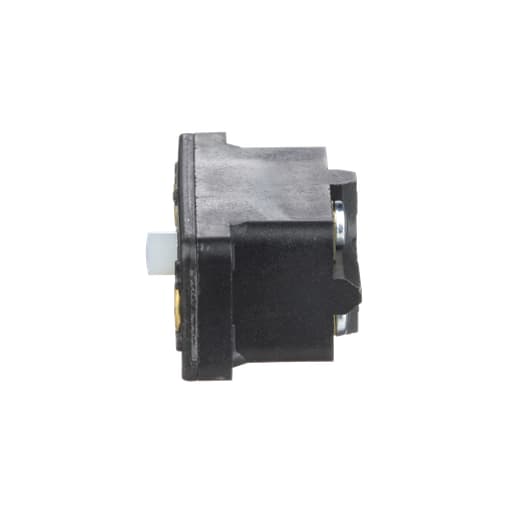

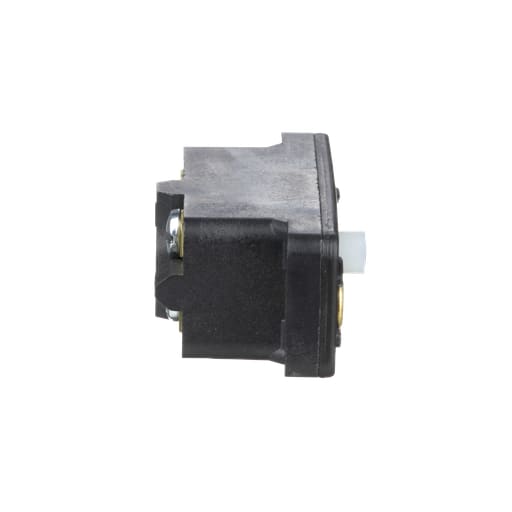

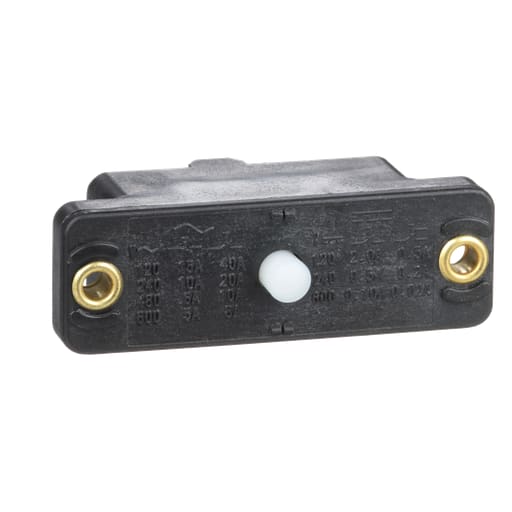

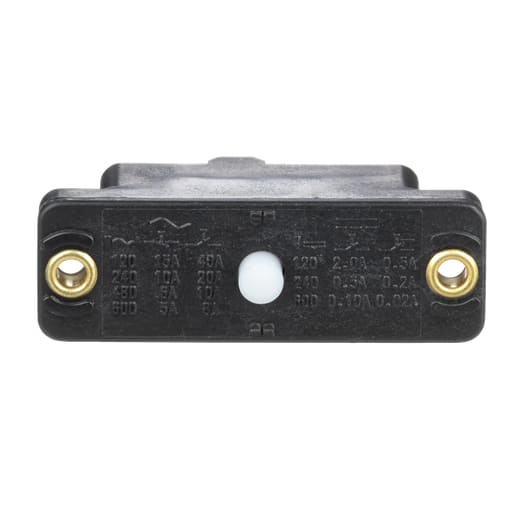

TESENSOR - TEC Sensors 9007AO2 snap switch, 9007AO, plunger head, 1 NO and 1 NC contact, 15 A at 120 VAC, 600 VAC maximum

This product is part of the Nema Limit Switches range, an offer of heavy duty metal limit switches. An adjustable actuator is recommended. If a non-adjustable actuator is used, a resilient type or a mechanical stop should be used to prevent bottoming of button mechanism. The minimum recommended overtravel in both trip and reset directions is 0.015 in. (0.38 mm) on adjustable actuator switches. Nonadjustable actuator snap switches have a total maximum travel differential limit of plus 0.030 in. (0.76 mm). Most snap switches are UL component recognized and CSA certified. It is a safety switch with a rated operating current of 5A at 600V AC, 6A at 480V AC, 10A at 240V AC, 15A at 120V AC, 0.1A at 250V DC, 0.25A at 125V DC. It is an IP20 and NEMA 1 rated product. This NEMA limit switch has fixed body made of metal. Its dimensions are 21.08mm (width) x 26.16mm (depth) x 63.5mm (height) and weighs 0.05kg. This product is certified by UL and CSA. It complies with UL 508, NEMA 250 and C22-2-14 standards. Compliant with US and international standards, the 9007 series limit switches can withstand the impact of heavy industry. This constitutes a comprehensive range of limit switches rigged and dependable built with unparalleled quality.
