TESENSOR - TEC Sensors 9007B1 Limit switch lever, 9007, arm t+ft+options
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901759720
Actuator - CAST ZINC SPRING RETURN ROLLER LEVER 1.5-1.5 IN - CONVERTIBLE ROLLER
Applications - 9007T/FT,9007T/FT,9007T-9007FT-9007C..S9,SEVERE DUTY
Catalog Number - 9007-B1
ERP_productname - TES 9007B1 LEVER ARM
Packaging
1 ea
EAN
00785901759720
Part #
185350
Catalog #
9007B1
Commercial reference
9007B1
12-Digit UPC:
785901759720
Actuator:
CAST ZINC SPRING RETURN ROLLER LEVER 1.5-1.5 IN - CONVERTIBLE ROLLER
Applications:
9007T/FT,9007T/FT,9007T-9007FT-9007C..S9,SEVERE DUTY
Catalog Number:
9007-B1
ERP_productname:
TES 9007B1 LEVER ARM
Family Brand Name:
Telemecanique
Size:
1.50 INCHES 0.75 X 0.25 INCHES
Sub Brand:
9007T/FT
Type:
Limit switch lever
SoneparProductId:
SKU_US_26782045

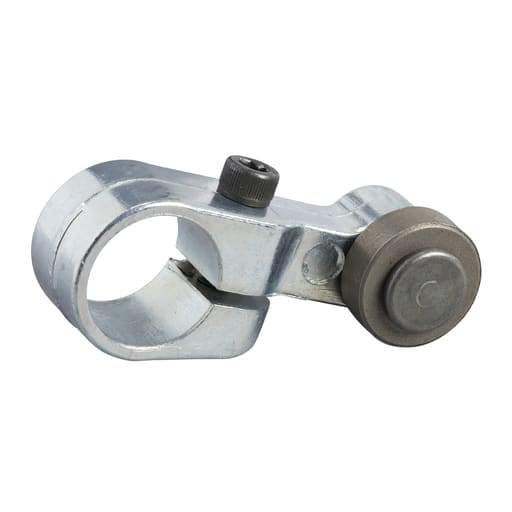

This product is part of the Nema Limit Switches range. This limit switch lever has a spring return convertible roller operator and provides a lateral approach without positive opening operation. The switch lever with a rotary movement and switching actuation of 30. cam. This roller lever has spring return operator, made of cast zinc. Its dimensions are 19.05mm (diameter) x 6.35mm (width). The lever length is 38.1mm. It weighs 0.05kg. It is associated with complete products such as 9007FT, 9007T and 9007CXXS9. The associated heads are 9007BS9, 9007CS9, 9007T5S9, 9007T10S9, 9007NS9 and 9007AS9. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
