TESENSOR - TEC XCSA503 Safety switch, TEC Safety switches XCS, metal XCSA, 1 NC + 2 NO, slow break, 1 entry tapped 1/2" NPT

Essential specifications

12-Digit UPC - 389110718877
Actuator - KEY
Amperage - 10 Amp
Applications - KEY OPERATED TURRET HEAD
Catalog Number - XCSA503

Packaging

1 ea

EAN

03389110718874

Part #

130163

Catalog #

XCSA503

Commercial reference

XCSA503

12-Digit UPC:

389110718877

Actuator:

KEY

Amperage:

10 Amp

Applications:

KEY OPERATED TURRET HEAD

Catalog Number:

XCSA503

Country of Origin:

France

Depths:

44 mm

ERP_productname:

TES XCSA503 SAFETY INTERLOCK

Enclosure:

NEMA 4/4X/12 - IP67

Family Brand Name:

Telemecanique

Head Type:

Key operated turret head

Heights:

114-114 mm

Material:

Metal

Number of Poles:

3 Pole

Size:

1.73 in

Tc Connection:

TERMINAL 1 X 0.5...2 X 1.5 MMA. WITH OR WITHOUT CABLE END

Type:

Safety switch

Voltage:

6 A 120 Volt, AC-15, A300 EN/IEC 60947-5-1-3 A 240 Volt, AC-15, A300 EN/IEC 60947-5-1-0.55 A 125 Volt, DC-13, Q300 EN/IEC 60947-5-1-0.27 A 250 Volt, DC-13, Q300 EN/IEC 60947-5-1

Widths:

40 mm

SoneparProductId:

SKU_US_26430015

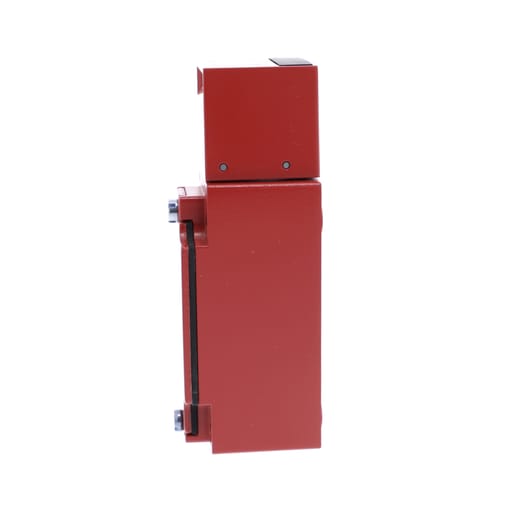

This Preventa XCS Key Operated Safety Switch has an adjustable turret head and a Zamak body. This key operated safety switch for guard doors, with adjustable turret head switch, has a robust red coated Zamak body with one cable gland entry, allowing an easier installation. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. When wired as recommended in relevant standards, it conforms to category 4, performance level PL e, SIL 3 and complies withEN/ISO 13849-1, EN/IEC 61508. It simply ensures a "door-open machine stop" control on your machine, with maximal reliability. It secures the machine and system operation with a key, only available to authorized operators.
