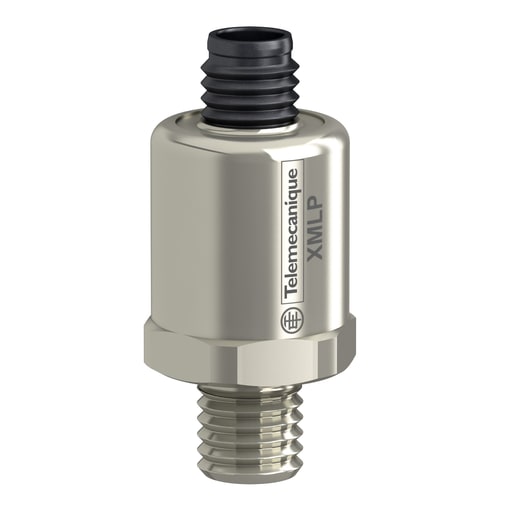

TESENSOR - TEC XMLP300PD230 Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 300 PSI, 1/4"18NPT, 4...20 mA, M12, set 1

This product is part of the XM range, an offer of electronic pressure sensors. The electronic pressure sensor features a 1/4-18 NPT (male) for fluid connection. It is a pressure switch with a pressure setting range of 0psi to 300psi, a maximum permissible accidental pressure of 900psi and a destruction pressure of 2200psi. It supports 4mA to 20mA, 2-wire analog output signal. It is furnished with 4-pin M12 male connector for electrical connection. It is an electronic pressure sensor with a rated supply voltage of 12V to 24V DC (voltage limits 7V to 33V) and a current consumption of <23mA. Its dimensions are 26mm (diameter) x 36mm (length). It weighs 0.088kg. It is suitable for monitoring air, fresh water, gas, hydraulic oils and refrigeration fluids. This product is certified by CE, CULus, EAC and RCM. It meets EN/IEC 61326-2-3 and NSF ANSI 61 standards. One of the most comprehensive catalogues of industrial and power pressure sensors on the market. The line of XM Pressure Sensors and Switches (formerly known as OsiSense) combine the latest pressure sensing technology with adaptability to virtually any configuration.
