TESENSOR - TEC XT230A2MDB TEC Capacitive proximity sensors XT, cylindrical M30, plastic, Sn 15 mm, 24...240 V AC

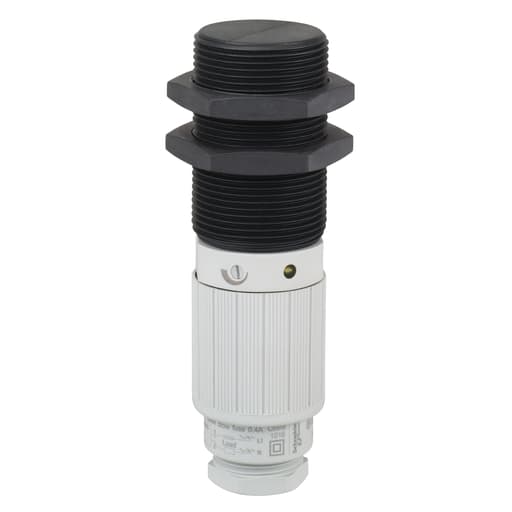

The XT offer is a range of capacitive proximity sensors, dedicated to the detection of insulated or conductive materials. These sensors are suitable for the detection of any object irrespective of material or conductivity. This sensor features a cylindrical plastic case, diameter 30mm, threaded M30 x 1.5 and screw terminals. It is suited to automatic feed systems for livestock. It is non flush mountable with an adjustable sensing distance of 0mm to 15mm. 2-wire, 24V to 240V DC or 24V AC, with NO or NC selectable function. Output state indication by a yellow LED. This sensor enables detection of the level of all types of feed, pellets, grains, powders, etc. This sensor complies with CE and cETLus certifications, and with IEC 60947-5-2 and UL 61010-1 standards. A threaded sleeve XTAZ30 and a 90. fixing bracket XXZ30, to be ordered separatly, are available to facilitate the mounting and protection of this sensor.
