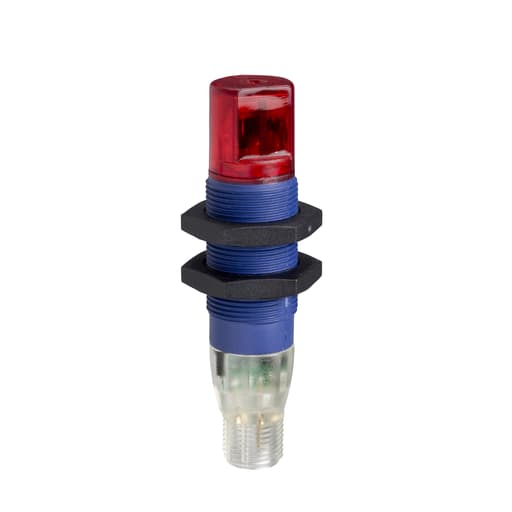

TESENSOR - TEC XUB2AKSWM12T Photoelectric sensors XU, XUB, emitter, 90?, 12...24 VDC, M12
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 891101494320
Amperage - <= 100 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION)
Applications - -
Catalog Number - XUB2AKSWM12T
Current - 35 mA
Packaging
1 ea
EAN
03389110149432
Part #
227108
Catalog #
XUB2AKSWM12T
Commercial reference
XUB2AKSWM12T
12-Digit UPC:
891101494320
Amperage:
<= 100 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION)
Applications:
-
Catalog Number:
XUB2AKSWM12T
Current:
35 mA
ERP_productname:
TES XUB2AKSWM12T PHOTOELECTRIC SENSOR 18MM EMITTER XUB
Enclosure:
IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529-IP69K DOUBLE INSULATION CONFORMING TO DIN 40050,PBT
Enclosure Material:
PBT
Family Brand Name:
Telemecanique
Length:
76 mm
Material:
Plastic
Sensing Range:
15-15 M THRU BEAM NEED A RECEIVER,> 16.4...49.21 FT (> 5...15 M)
Size:
18 MM,76 MM
Sub Brand:
OSISENSE
Tc Connection:
1 MALE CONNECTOR M12, 4 PINS
Type:
CYLINDRICAL M18,GENERAL PURPOSE SINGLE MODE,PHOTO-ELECTRIC SENSOR TRANSMITTER,THRU BEAM
Voltage:
12...24 Volt DC REVERSE POLARITY PROTECTION
