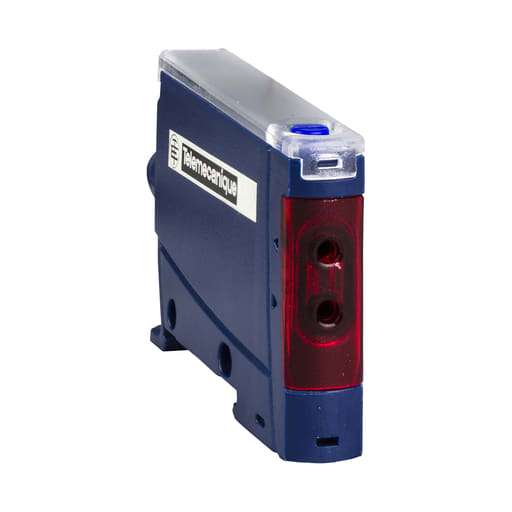

TESENSOR - TEC XUDA1PSML2 Photoelectric sensors XU, XUD, precabled, PVC, PNP, discrete solid state

Essential specifications

12-Digit UPC - 785901604679
Amperage - <= 100 MA OVERLOAD PROTECTION)-<= 100 MA SHORT-CIRCUIT PROTECTION)
Applications - APPLICATION ASSEMBLY
Catalog Number - XUDA1PSML2
Country of Origin - Hungary

Packaging

1 ea

EAN

03389110160369

Part #

227899

Catalog #

XUDA1PSML2

Commercial reference

XUDA1PSML2

12-Digit UPC:

785901604679

Amperage:

<= 100 MA OVERLOAD PROTECTION)-<= 100 MA SHORT-CIRCUIT PROTECTION)

Applications:

APPLICATION ASSEMBLY

Catalog Number:

XUDA1PSML2

Country of Origin:

Hungary

Current:

50 mA

Depths:

10 mm

ERP_productname:

TES XUDA1PSML2 PHOTOELECTIRC SENSORA DC PNP XUD

Enclosure:

IP64 IEC 529 OPTIC FIBER ?? 1 MM-IP65 IEC 529 OPTIC FIBER ?? 2 MM,PBT

Enclosure Material:

PBT

Family Brand Name:

Telemecanique

Heights:

65 mm

Size:

0.39 in

Sub Brand:

OSISENSE

Tc Connection:

CABLE

Type:

Photo-electric sensor;Fiber design;Application assembly

Voltage:

12...24 Volt DC REVERSE POLARITY PROTECTION

Widths:

40 mm

SoneparProductId:

SKU_US_30113782

This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor in fibre design. It has a 1 normally opened or 1 normally closed programmable discrete solid state type of output. It is furnished with 2m cable for electrical connection. It is an IP64 and IP65 rated product. It is a photoelectric sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection, a no-load current consumption of ?50mA and a switching frequency of ?1kHz. This sensor with red emission and it has 2 LEDs. The enclosure is made of PBT with PMMA lens. Its dimensions are 40mm (Width) x 10mm (Depth) x 65mm (Height) and weighs 0.04kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CE and CULus.
