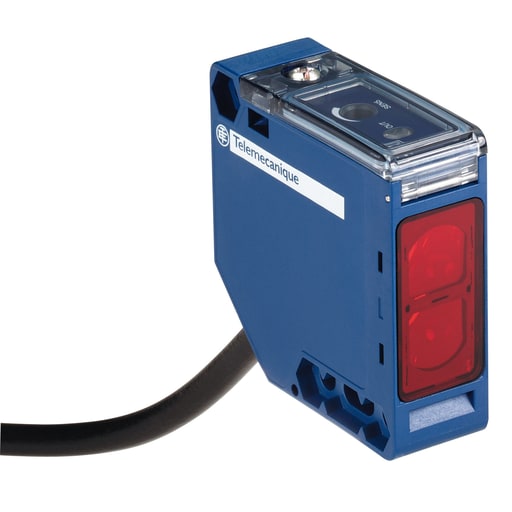

TESENSOR - TEC XUK1ARCNL2 Photoelectric sensors XU, XUK, reflex, Sn 7 m, 24...240VAC/DC, cable 2 m

Essential specifications

12-Digit UPC - 389110161079
Amperage - 3 Amp COS ????  = 1 FOR 0.5 MILLION CYCLES AT 1 OPERATING CYCLE PER SECOND AT 250 V)
Applications - -
Catalog Number - XUK1ARCNL2
Country of Origin - Indonesia

Packaging

1 ea

EAN

03389110161076

Part #

103155

Catalog #

XUK1ARCNL2

Commercial reference

XUK1ARCNL2

12-Digit UPC:

389110161079

Amperage:

3 Amp COS ????  = 1 FOR 0.5 MILLION CYCLES AT 1 OPERATING CYCLE PER SECOND AT 250 V)

Applications:

Catalog Number:

XUK1ARCNL2

Country of Origin:

Indonesia

Current:

35 mA

Depths:

50 mm

ERP_productname:

TES XUK1ARCNL2 PHOTO SENSOR

Enclosure:

IP65 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT

Enclosure Material:

PBT

Family Brand Name:

Telemecanique

Heights:

50 mm

Material:

Plastic

Sensing Range:

7-7 M REFLEX NEED REFLECTOR XUZC50,> 16.4...49.21 FT (> 5...15 M)

Size:

1.97 in

Sub Brand:

OSISENSE

Tc Connection:

CABLE

Type:

Reflex;Photo-electric sensor;Compact 50 x 50;General purpose single mode

Voltage:

24...240 Volt AC/DC

Wattage:

2 Watt AC

Widths:

18 mm

SoneparProductId:

SKU_US_26674719

This compact design single mode (reflex system) photo-electric sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This mono-mode rectangular photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 1 LED display allows to identify status of the sensor. IP65 protection makes this product ready for the harshest environments. It can operate in very cold (-25.C) and hot environments (+55.C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
