TESENSOR - TEC XUK2ARCNL2T Photoelectric sensors XU, XUK, emitter, 24...240VAC/DC, cable 2 m

Essential specifications

12-Digit UPC - 389110162083
Amperage - 3 Amp COS ????  = 1 FOR 0.5 MILLION CYCLES AT 1 OPERATING CYCLE PER SECOND AT 250 V)
Applications - -
Catalog Number - XUK2ARCNL2T
Country of Origin - Indonesia

Packaging

1 ea

EAN

03389110162080

Part #

123778

Catalog #

XUK2ARCNL2T

Commercial reference

XUK2ARCNL2T

12-Digit UPC:

389110162083

Amperage:

3 Amp COS ????  = 1 FOR 0.5 MILLION CYCLES AT 1 OPERATING CYCLE PER SECOND AT 250 V)

Applications:

Catalog Number:

XUK2ARCNL2T

Country of Origin:

Indonesia

Current:

35 mA

Depths:

50 mm

ERP_productname:

TES XUK2ARCNL2T PHOTOELECTRIC SENSOR 50X50 AC/DC EMITTER XUK

Enclosure:

IP65 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT

Enclosure Material:

PBT

Family Brand Name:

Telemecanique

Heights:

50 mm

Material:

Plastic

Sensing Range:

30-30 M THRU BEAM NEED A RECEIVER,> 49.21...98.43 FT (> 15...30 M)

Size:

1.97 in

Sub Brand:

OSISENSE

Tc Connection:

CABLE

Type:

Thru beam;Photo-electric sensor transmitter;Compact 50 x 50;General purpose single mode

Voltage:

24...240 Volt AC/DC

Widths:

18 mm

SoneparProductId:

SKU_US_25602159

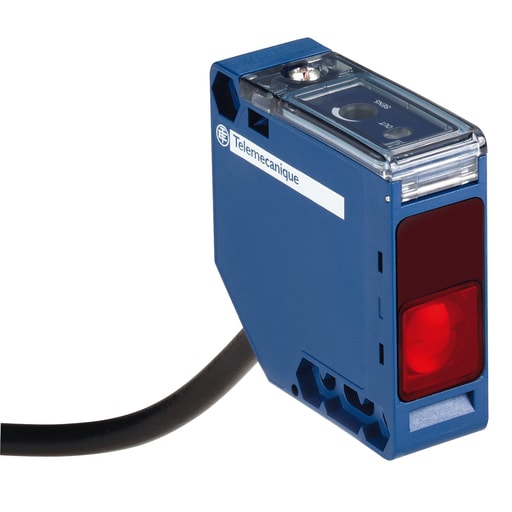

This compact design single mode (thru-beam system) photo-electric transmitter has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This mono-mode rectangular photoelectric emitter has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 1 LED display allows to identify status of the sensor. IP65 protection makes this product ready for the harshest environments. It can operate in very cold (-25.C) and hot environments (+55.C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
