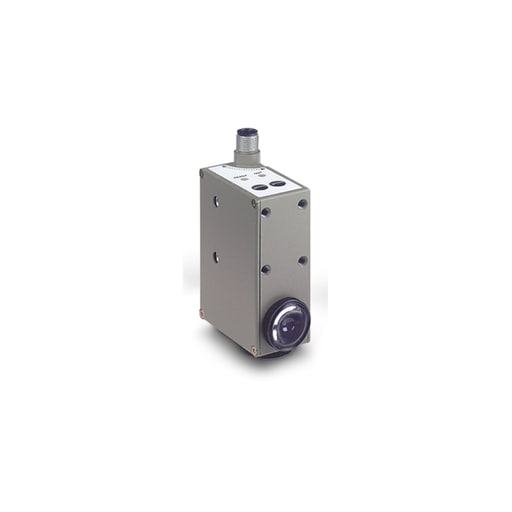

TESENSOR - TEC XURK1KSMM12 Photoelectric sensors XU, diffuse, Sn 9 mm, NO or NC, M12 connector

This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor in XUR compact design. It has a diffuse detection system. It supports 18mm spot 2mm x 7mm need lens XURZ01, 7mm spot 1mm x 4mm need lens XURZ02 and 9mm spot 1.5mm x 5mm without lens nominal sensing distance and 1 normally opened or 1 normally closed programmable PNP or NPN discrete output. It is furnished with 3-position, 4-pin M12 adjustable male connector for electrical connection and 1 LED for output state. It is a photoelectric sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection, a no-load current consumption of ?80mA and a switching frequency of ?10Hz. It is an IP67 rated product. The enclosure is made of zinc alloy with glass lens. Its dimensions are 31mm (Width) x 58mm (Depth) x 82mm (Height) and weighs 0.55kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CE.
