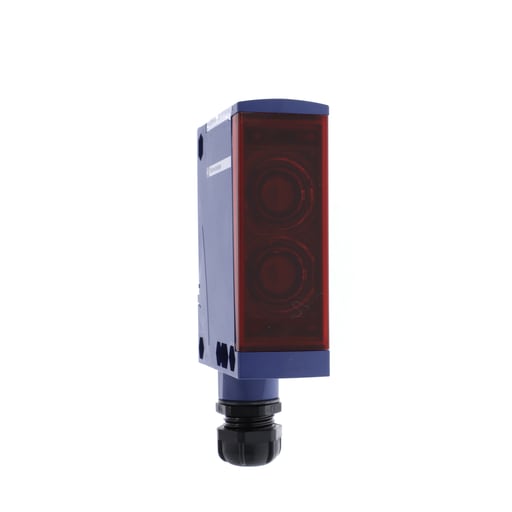

TESENSOR - TEC XUX5ARCNT16 Photoelectric sensors XU, XUX, diffuse, Sn 2.1 m, 24...240VAC/DC, terminals

Essential specifications

12-Digit UPC - 389110171108
Amperage - 3 Amp COS ????  = 1 FOR 0.5 MILLION CYCLES AT 1 OPERATING CYCLE PER SECOND AT 250 V)
Applications - -
Catalog Number - XUX5ARCNT16
Country of Origin - France

Packaging

1 ea

EAN

03389110171105

Part #

204004

Catalog #

XUX5ARCNT16

Commercial reference

XUX5ARCNT16

12-Digit UPC:

389110171108

Amperage:

3 Amp COS ????  = 1 FOR 0.5 MILLION CYCLES AT 1 OPERATING CYCLE PER SECOND AT 250 V)

Applications:

Catalog Number:

XUX5ARCNT16

Country of Origin:

France

Current:

35 mA

Depths:

77 mm

ERP_productname:

TES XUX5ARCNT16 PHOTOELECTRIC SENSOR COMPACT XUX

Enclosure:

IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT

Enclosure Material:

PBT

Family Brand Name:

Telemecanique

Heights:

92 mm

Material:

Plastic

Sensing Range:

2.1-2.1 M DIFFUSE,> 3.28...16.4 FT (> 1...5 M)

Size:

3.03 in

Sub Brand:

OSISENSE

Tc Connection:

SCREW-CLAMP TERMINALS, 1 X 1.5 MMA. OR 1 X 0.75 MMA. WITH ADAPTOR

Type:

Diffuse;Photo-electric sensor;Compact 92 x 71;General purpose single mode

Voltage:

24...240 Volt AC/DC

Wattage:

2 Watt AC/DC

Widths:

31 mm

SoneparProductId:

SKU_US_26924566

This compact design single mode (diffuse system) photo-electric sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This mono-mode rectangular photoelectric sensor has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 2 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25.C) and hot environments (+55.C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
