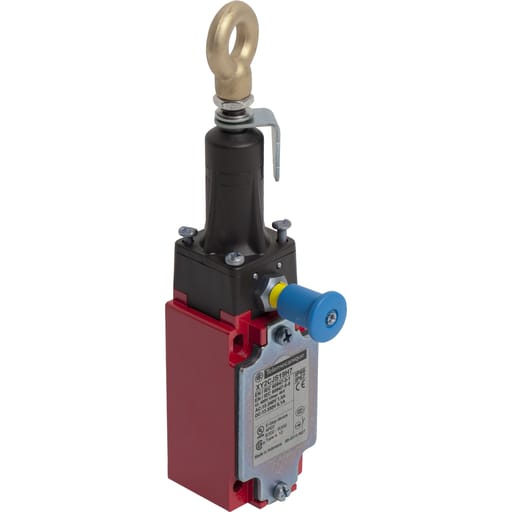

TESENSOR - TEC XY2CJS19H7 Latching emergency stop rope pull switch, TEC rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, 1/2" NPT

This product is part of the XY2C range, an offer of emergency stop rope pull switches. It is ideal for all machines requiring stopping of dangerous movement in the immediate vicinity of the machine. It is suitable for applications such as woodworking machines, shears, conveyor systems, printing machines, textile machines etc. This emergency stop rope pull switch has 2 normally closed and 1 normally opened, slow-break contacts with positive opening operation. It is a switch with a rated operational current of 0.1A at 250V AC, 1.5A at 240V AC and a conventional enclosed thermal current of 6A. It is furnished with screw clamp terminals for electrical connection. Switch has one 1/2 inch NPT tapped conduit entries. The trigger cable anchor point at right and left hand side. Switch is has a pull reset pushbutton. It offers long mechanical durability which is about 100000 operating cycles. It is an IP66 and IP67 rated product. The casing is made of Zamak (red) with galvanized steel cover. Its dimensions are 1.57 inches (Width) x 2.53 inches (Depth) x 7.55 inches (Height). This product meets UL508, CSA C22.2 No 14, EN/ISO 13850, EN/IEC 60947-5-1, EN/IEC 60204-1, EN/IEC 60947-5-5, machinery directive 2006/42/EC and work equipment directive 2009/104/EC standards. This product is certified by UL, CSA, EAC and CCC. XY2 range emergency stop rope pull switch is intended for all machines requiring stopping of a dangerous movement in the immediate vicinity of the machine.
