TESENSOR - TES Sensors 9007AO36 Limit switch, 9007, 600 VAC 15amp ao +options

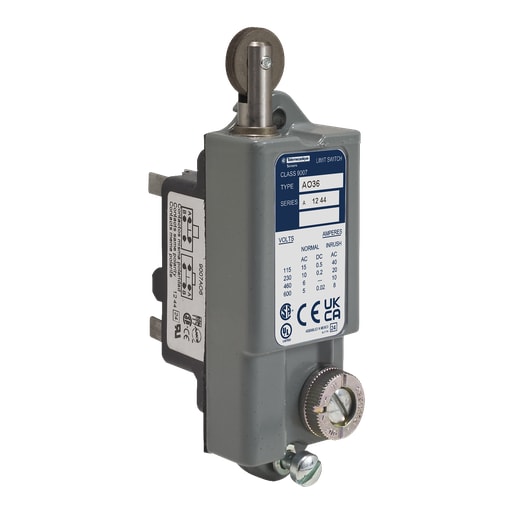

This product is part of the Nema Limit Switches range, an offer of heavy duty metal limit switches. The limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 normally closed + 1 normally opened, SPDT-DB (single pole double throw, double break) form Z, snap action contacts. The steel spring return roller plunger operator with micrometre adjustment supports traverse approach, 2 directions and switch actuation by 30. cam. It is furnished with screw clamp terminals for electrical connection. It is a safety switch with a rated operating current of 5A at 600V AC, 6A at 480V AC, 10A at 240V AC, 15A at 120V AC, 0.1A at 250V DC, 0.25A at 125V DC. It is an IP20 and NEMA 1 rated product. This NEMA limit switch has plug-in body made of metal. Its dimensions are 60.45mm (width) x 35.05mm (depth) x 88.14mm (height) and weighs 0.05kg. This product is certified by UL and CSA. It complies with UL 508, NEMA 250 and C22-2-14 standards. Basic contact mechanism, with operator, for use where separate enclosures are not required. Compliant with US and international standards, the 9007 series limit switches can withstand the impact of heavy industry. This constitutes a comprehensive range of limit switches rigged and dependable built with unparalleled quality.
