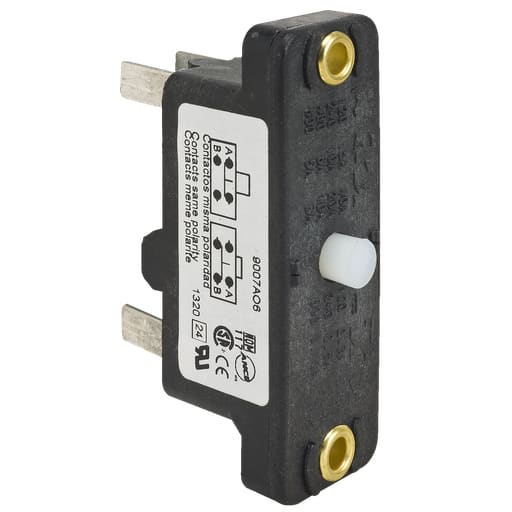

TESENSOR - TES Sensors 9007AO6 Snap switch, 9007AO, plunger head, 15A at 120VAC, 1NO/1NC, open type

CopyCopy
TESENSOR - TES Sensors 9007AO6 Snap switch, 9007AO, plunger head, 15A at 120VAC, 1NO/1NC, open type

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901803317

  • Actuator - CAST ZINC,PLUNGER HEAD,SPRING RETURN PLUNGER PLASTIC WITH THERMOPLASTIC END,VERTICAL APPROACH, 1 DIRECTION

  • Amperage - 15 Amp,5 Amp 600 V AC, A600 NEMA RATING DESIGNATION-6 Amp 480 V AC, A600 NEMA RATING DESIGNATION-10 Amp 240 V AC, A600 NEMA RATING DESIGNATION-15 Amp 120 V AC, A600 NEMA RATING DESIGNATION-0.1 Amp 250 V DC-0.25 Amp 125 V DC

  • Catalog Number - 9007AO6

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00785901803317

Part #

113496

Catalog #

9007AO6

Commercial reference

9007AO6

12-Digit UPC:

785901803317

Actuator:

CAST ZINC,PLUNGER HEAD,SPRING RETURN PLUNGER PLASTIC WITH THERMOPLASTIC END,VERTICAL APPROACH, 1 DIRECTION

Amperage:

15 Amp,5 Amp 600 V AC, A600 NEMA RATING DESIGNATION-6 Amp 480 V AC, A600 NEMA RATING DESIGNATION-10 Amp 240 V AC, A600 NEMA RATING DESIGNATION-15 Amp 120 V AC, A600 NEMA RATING DESIGNATION-0.1 Amp 250 V DC-0.25 Amp 125 V DC

Catalog Number:

9007AO6

Country of Origin:

Mexico

Depths:

1.03 Inch

ERP_productname:

TES 9007AO6 INDUSTRIAL SNAP SW

Enclosure:

NEMA 1 NEMA TYPE 250

Family Brand Name:

Telemecanique

Heights:

2-1/2 Inch

Material:

Metal

Number of Poles:

1 Pole

Size:

0.83 IN,1.03 IN,2.5 IN

Sub Brand:

9007AO/CO

Tc Connection:

1-2 6 BINDER HEAD SCREW TERMINALS AWG 22...AWG 14)

Type:

SNAP BASIC LIMIT SWITCH

Voltage:

600 Volt

Widths:

0.83 in

SoneparProductId:

SKU_US_26347378

Industrial snap switches are used as the electrical contacts within many control circuits and products. This snap switch has a thermoplastic plunger. This snap switch has two normally open snap action contacts. Contacts have an A600 inductive rating and 15A resistive rating. They also have 15A at 125VAC, 10A at 240VAC, 6A at 480VAC and 5A at 600VAC ratings. They also have 0.25A at 125VDC and 0.1A at 250VDC ratings. This snap switch is 2.50 inches tall, 0.83 inches wide and 1.03 inches deep. Snap switch is NEMA 1 and IP20 rated. Snap switch is UL component recognized and CSA certified. The 9007 AO Heavy Duty snap switches with a plastic body and a broad selection of operator styles and contact arrangements in 10A and 15A versions. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
