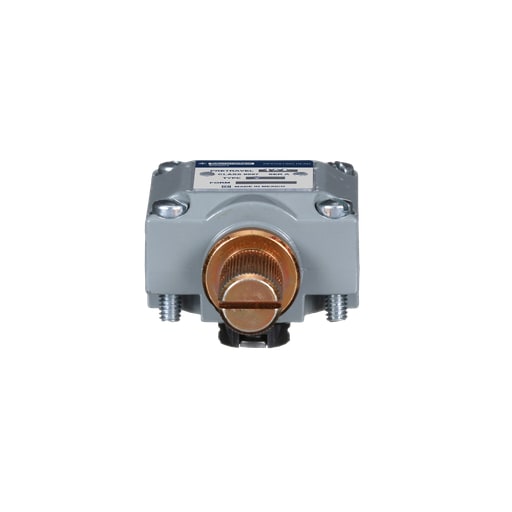

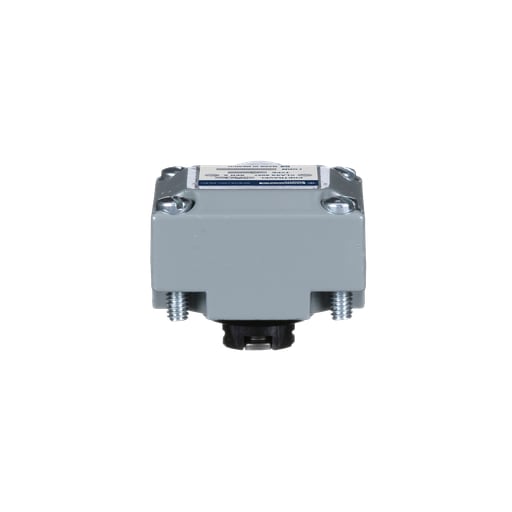

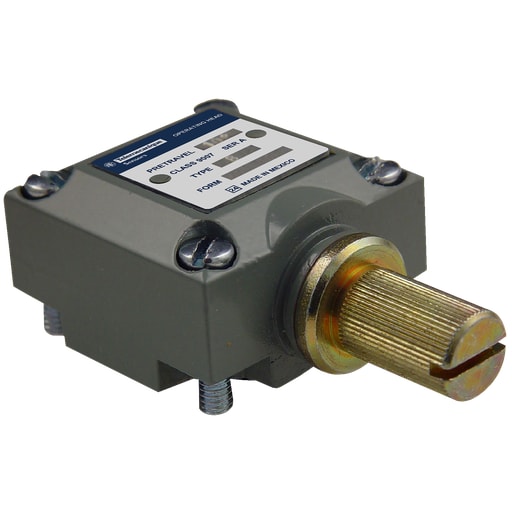

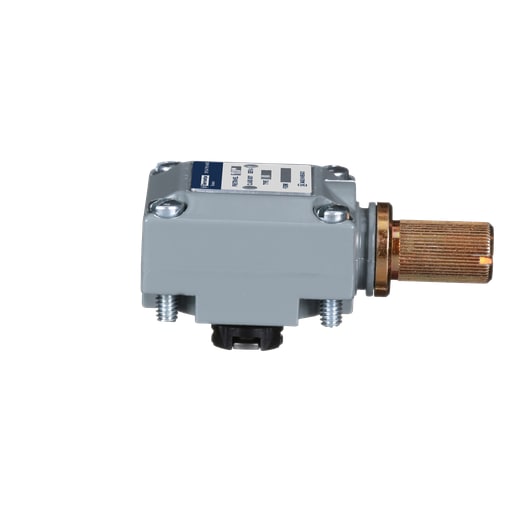

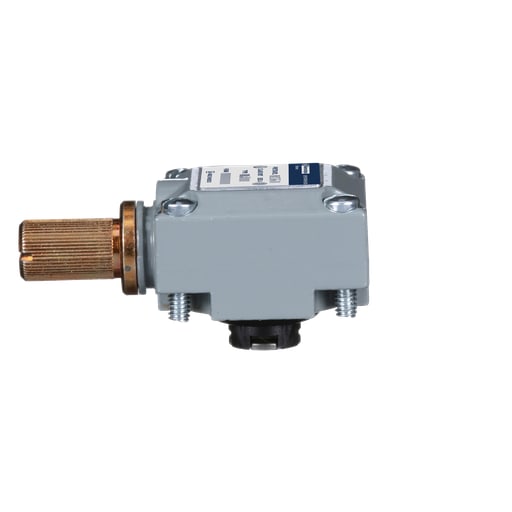

TESENSOR - TES Sensors 9007B limit switch head, 9007C, rotary lever arm, standard pretravel, spring return, clockwise only operation, NEMA 4 and 13

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 389119057588

  • Actuator - SPRING RETURN WITHOUT OPERATING LEVER ZINC CW & CCW PROGRAMMABLE

  • Applications - 9007C

  • Catalog Number - 9007B

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

03389119057585

Part #

185086

Catalog #

9007B

Commercial reference

9007B

12-Digit UPC:

389119057588

Actuator:

SPRING RETURN WITHOUT OPERATING LEVER ZINC CW & CCW PROGRAMMABLE

Applications:

9007C

Catalog Number:

9007B

Country of Origin:

Mexico

ERP_productname:

TES 9007B LIMIT SW HEAD ONLY

Family Brand Name:

Telemecanique

Head Type:

Rotary head

Sub Brand:

9007C

Type:

Limit switch head

SoneparProductId:

SKU_US_69914710

9007C NEMA heavy duty industrial limit switches are designed to meet many domestic and international standards. The metal body of these limit switches can withstand the impact of heavy industry. This modular limit switch line has five bodies types, 20 different heads and more than 200 lever arms. The 9007C limit switches are UL Listed and CSA certified. 9007C limit switches can be used in material working, packaging, material handling, conveying, food and beverage, mining and mineral, construction, oil and gas, and crane and hoist applications. This limit switch rotary head is made of metal. It weighs 0.19kg. It is compatible with 9007C heavy duty industrial limit switch lever and body. Compact and standard limit switch for hazardous locations. Compliant with US and international standards, the 9007 series limit switches can withstand the impact of heavy industry.
