TESENSOR - TES XCMD2115C12 Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1NC+1 NO, snap, M12

Essential specifications

12-Digit UPC - 785901913245
Actuator - Rotary
Amperage - 0.22 Amp 50 V, DC-13 EN/IEC 60947-5-1 APPENDIX Amp-3 Amp 50 V, AC-15 EN/IEC 60947-5-1 APPENDIX Amp
Catalog Number - XCMD2115C12
Country of Origin - Indonesia

Packaging

1 ea

EAN

03389110221329

Part #

159150

Catalog #

XCMD2115C12

Commercial reference

XCMD2115C12

12-Digit UPC:

785901913245

Actuator:

Rotary

Amperage:

0.22 Amp 50 V, DC-13 EN/IEC 60947-5-1 APPENDIX Amp-3 Amp 50 V, AC-15 EN/IEC 60947-5-1 APPENDIX Amp

Catalog Number:

XCMD2115C12

Country of Origin:

Indonesia

Depths:

16 mm

ERP_productname:

TES XCMD2115C12 LMT SWITCH 240VAC 1.5A METAL XCMD

Family Brand Name:

Telemecanique

Head Type:

Rotary head

Heights:

50-50 mm

Material:

Metal

Number of Poles:

2 Pole

Size:

0.63 in

Sub Brand:

XCMD

Tc Connection:

MALE CONNECTOR M12, 5 PINS

Type:

Limit switch

Widths:

30 mm

SoneparProductId:

SKU_US_29505766

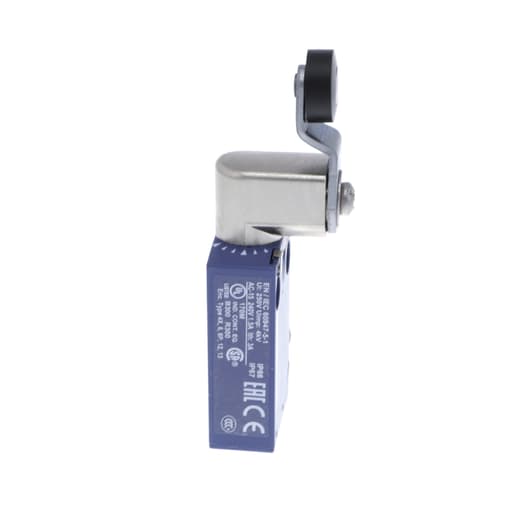

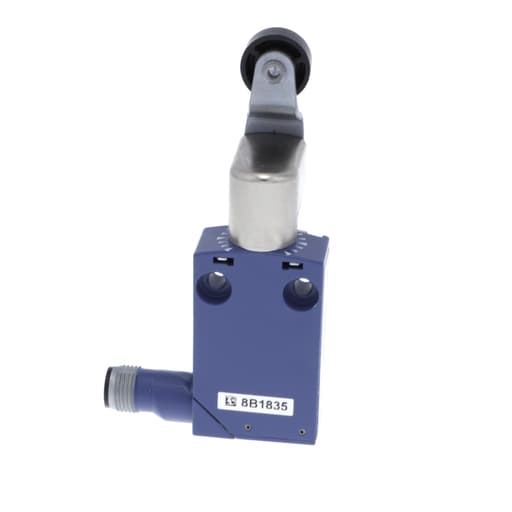

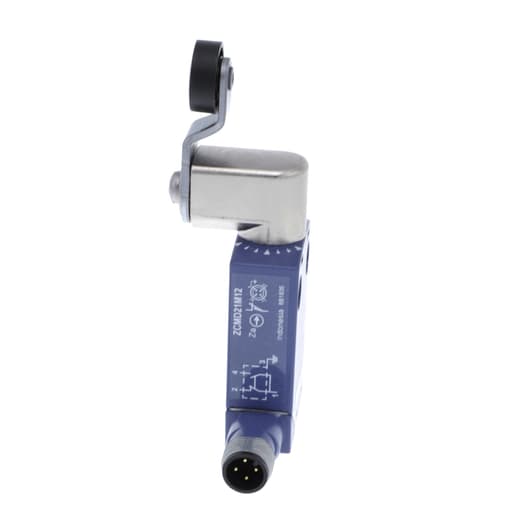

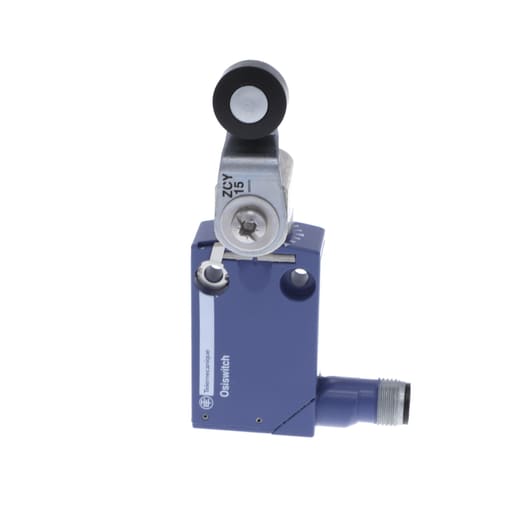

This XCMD miniature format limit switch has a thermoplastic roller lever and a Zamak body. This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
