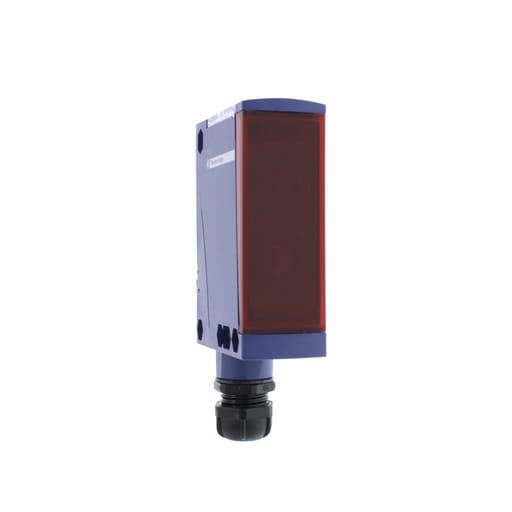

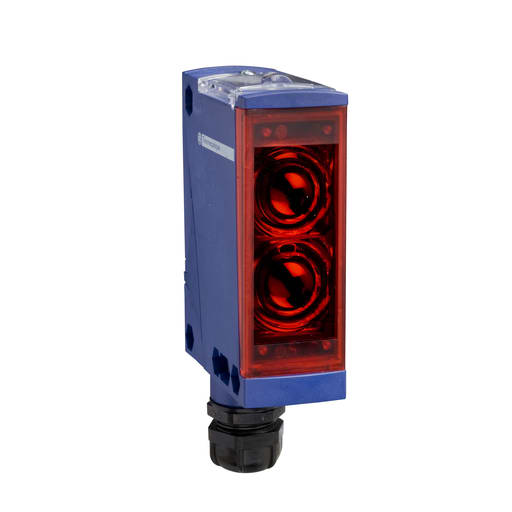

TESENSOR - TES XUX0AKSAT16 Photoelectric sensors XU, XUX, multi, Sn 0...40 m, 12...24 VDC, terminals

12-Digit UPC:

785901582410

Amperage:

<= 100 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION)

Applications:

-

Catalog Number:

XUX0AKSAT16

Country of Origin:

France

Current:

35 mA

Depths:

77 mm

ERP_productname:

TES XUX0AKSAT16 PHOTOELECTRIC SENSOR COMPACT XUX

Enclosure:

IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT

Enclosure Material:

PBT

Family Brand Name:

Telemecanique

Heights:

92 mm

Material:

Plastic

Sensing Range:

11-11 M POLARISED REFLEX NEED REFLECTOR XUZC50-40-40 M THRU BEAM NEED A TRANSMITTER XUX0AKSAT16T-2-2 M DIFFUSE-1.3-1.3 M DIFFUSE WITH BACKGROUND SUPPRESSION,> 0...131.23 FT (> 0...40 M)

Size:

3.03 in

Sub Brand:

OSISENSE

Tc Connection:

SCREW-CLAMP TERMINALS, 1 X 1.5 MMA. OR 1 X 0.75 MMA. WITH ADAPTOR

Type:

Multimode;Photo-electric sensor;Compact 92 x 71;General purpose multimode

Voltage:

12...24 Volt DC REVERSE POLARITY PROTECTION

Widths:

31 mm

SoneparProductId:

SKU_US_26459600
