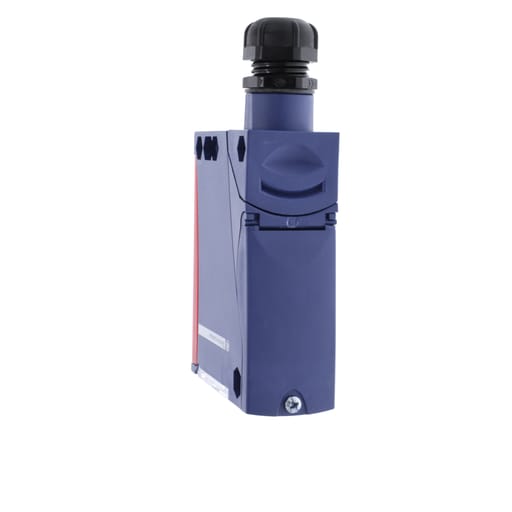

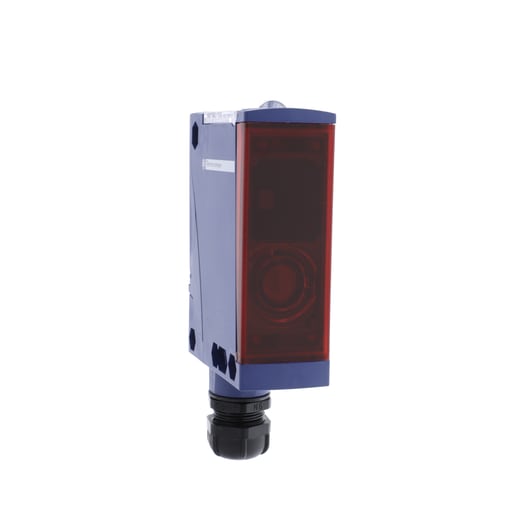

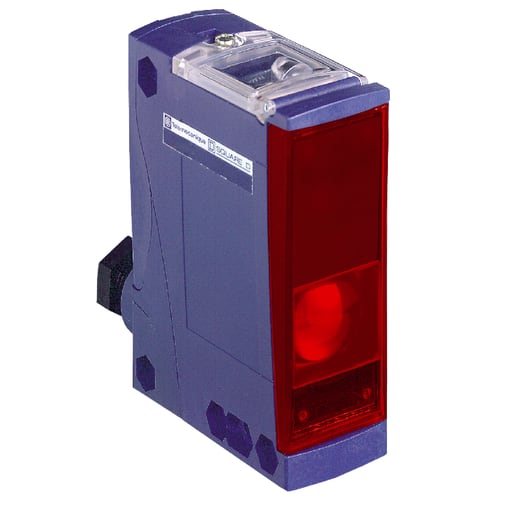

TESENSOR - TES XUX0ARCTT16T Photoelectric sensors XU, XUX, emitter, 24...240VAC/DC, terminals
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110168320
Amperage - 0.5 Amp COS ???? = 0.4 FOR 0.5 MILLION CYCLES AT 1 OPERATING CYCLE PER SECOND AT 250 V)-3 Amp COS ???? = 1 FOR 0.5 MILLION CYCLES AT 1 OPERATING CYCLE PER SECOND AT 250 V)
Applications - -
Catalog Number - XUX0ARCTT16T
Country of Origin - France
Packaging
1 ea
EAN
03389110168327
Part #
225699
Catalog #
XUX0ARCTT16T
Commercial reference
XUX0ARCTT16T
12-Digit UPC:
389110168320
Amperage:
0.5 Amp COS ???? = 0.4 FOR 0.5 MILLION CYCLES AT 1 OPERATING CYCLE PER SECOND AT 250 V)-3 Amp COS ???? = 1 FOR 0.5 MILLION CYCLES AT 1 OPERATING CYCLE PER SECOND AT 250 V)
Applications:
-
Catalog Number:
XUX0ARCTT16T
Country of Origin:
France
Current:
20 mA
Depths:
77 mm
ERP_productname:
TES XUX0ARCTT16T PHOTOELECTRIC SENSOR COMPACT EMITTER XUX
Enclosure:
IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT
Enclosure Material:
PBT
Family Brand Name:
Telemecanique
Heights:
92 mm
Material:
Plastic
Sensing Range:
40-40 M THRU BEAM NEED A RECEIVER,> 98.43 FT (30 M)
Size:
3.03 in
Sub Brand:
OSISENSE
Tc Connection:
SCREW-CLAMP TERMINALS, 1 X 1.5 MMA. OR 1 X 0.75 MMA. WITH ADAPTOR
Type:
Thru beam;Photo-electric sensor transmitter;Compact 92 x 71;General purpose multimode
Voltage:
24...240 Volt AC/DC
Widths:
31 mm
SoneparProductId:
SKU_US_28349976
