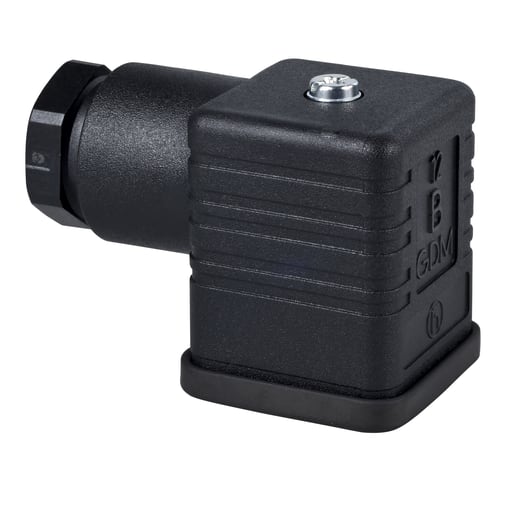

TESENSOR - TES XZCC43FCP40B Female, DIN 43650 A, 4 pin, elbowed connector, cable gland Pg 11
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110833952
Amperage - 16 Amp
Applications - CABLING ACCESSORIES
Catalog Number - XZCC43FCP40B
Country of Origin - Germany
Packaging
1 ea
EAN
03389110833959
Part #
217182
Catalog #
XZCC43FCP40B
Commercial reference
XZCC43FCP40B
12-Digit UPC:
389110833952
Amperage:
16 Amp
Applications:
CABLING ACCESSORIES
Catalog Number:
XZCC43FCP40B
Country of Origin:
Germany
ERP_productname:
TES XZCC43FCP40B SENSOR CONNECTOR 150V 3AMP +OPTIONS
Enclosure:
PLASTIC
Enclosure Material:
Plastic
Family Brand Name:
Telemecanique
Tc Connection:
ELBOWED FEMALE CONNECTOR DIN 43650 A, 4 PINS,SCREW TERMINAL 1.5 MMA. 7-10 MM
Type:
CONNECTOR
Voltage:
250 Volt
SoneparProductId:
SKU_US_26275163
This product is part of the XZ range, an offer of machine cabling accessories. This elbowed female connector features a PG11 cable gland. It provides locking screw for fixing. It is a DIN 43650 A connector with a rated operational voltage of 250V AC and a rated current of 16A. It is furnished with screw terminal for cable connection. It is an IP65 rated product. The enclosure is made of plastic. It weighs 0.035kg. It is suitable for railway, mobile equipment, lifts, escalators, hoisting, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries.
