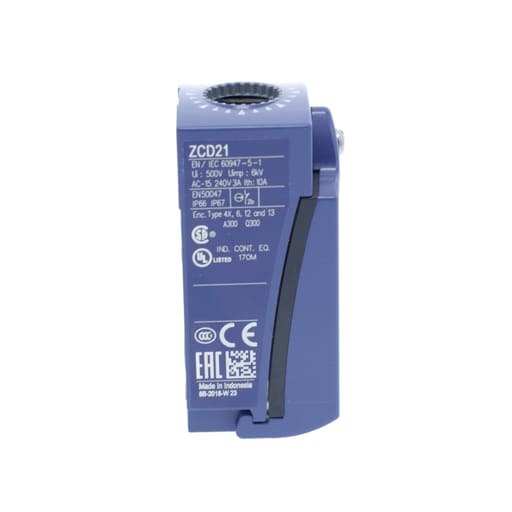

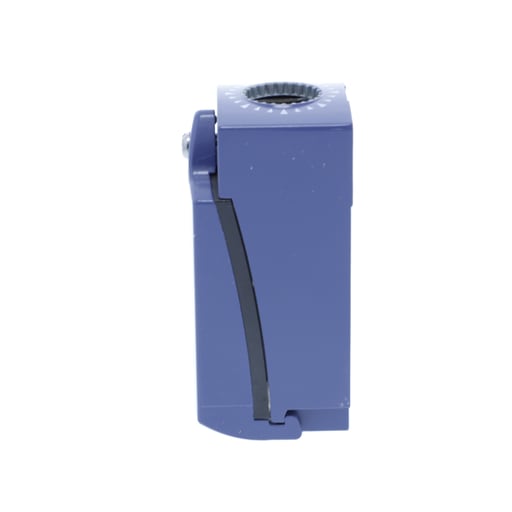

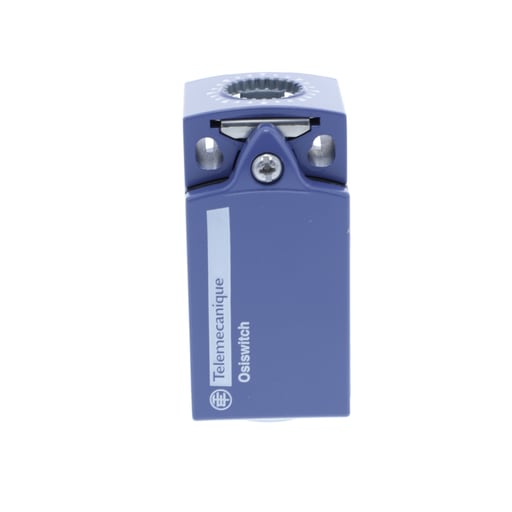

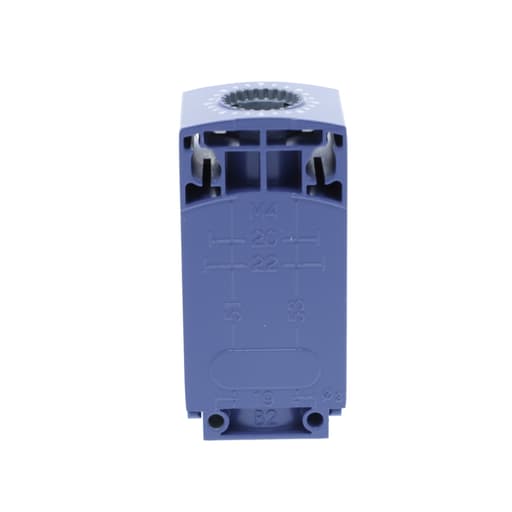

TESENSOR - TES ZCD21 Limit switch body, Limit switches XC Standard, ZCD, compact, 1NC+1 NO, snap action
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110185303
Applications - XCKD
Catalog Number - ZCD21
Country of Origin - France
Depths - 30 mm
Packaging
1 ea
EAN
03389110185300
Part #
113982
Catalog #
ZCD21
Commercial reference
ZCD21
12-Digit UPC:
389110185303
Applications:
XCKD
Catalog Number:
ZCD21
Country of Origin:
France
Depths:
30 mm
ERP_productname:
TES ZCD21 LIMIT SWITCH 240VAC 10A METAL ZCD
Family Brand Name:
Telemecanique
Heights:
65-65 mm
Number of Poles:
2 Pole
Size:
1.18 in
Sub Brand:
ZCD
Tc Connection:
SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA.
Type:
Limit switch body
Voltage:
300/500 Volt
Widths:
31 mm
SoneparProductId:
SKU_US_26565756
This ZCD body/contact assembly has a standard contacts and a Zamak body. It has 1 x NO + 1 x NC snap action contacts. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.
