The Wiremold Co - LCAN 861QTCBS WOOD/RAISED QUAD FLOO

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 786564013280

  • Amperage - 15 Amp

  • Applications - Commercial

  • Catalog Number - 861QTCBS

  • Color - Brass

Packaging

  • 1 ea

EAN

00786564013280

Part #

144699

Catalog #

861QTCBS

Commercial reference

861QTCBS

12-Digit UPC:

786564013280

Amperage:

15 Amp

Applications:

Commercial

Catalog Number:

861QTCBS

Color:

Brass

Construction:

Assembled

Country of Origin:

Mexico

ERP_productname:

WALK 861QTCBS WOOD/RAISED QUAD FLOOR BOX - BRASS

Family Brand Name:

Legrand

Finish:

Powder Coated

Material:

Aluminum

Sub Brand:

Wiremold

Type:

Floor Box

SoneparProductId:

SKU_US_32316210

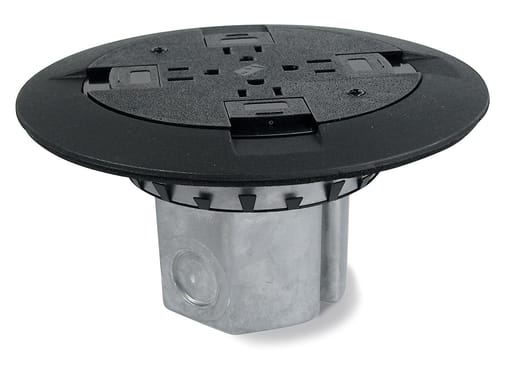

861 Series™ Floor Boxes bring power or communication services directly to the point-of-use for open space applications. 861 Series Floor Boxes have been designed for use in both raised and wood-constructed floors and are available with a variety of cover options. These boxes will accept Wiremold flush-style poke-thru cover assemblies which are available in dedicated power, communication or pass-through versions, They will also accept 895 and 896 Series Single Service Covers that are available in brass, brushed aluminum, and nonmetallic materials. 861 Series Floor Boxes are an ideal solution for bringing power or communication to board rooms, commercial offices or upscale residences. And all 861 Series Floor Boxes include TopGuard protection, an industry-leading design that not only meets but exceeds UL scrub water exclusion requirements for tile, wood, and carpeted floors. Certifications: RoHS Compliant; NAFTA Compliant; cULus Listed - Features: Complete with prewired 15A quad receptacle can be wired as standard or isolated ground.; Flush poke-thru-style flanges available in a variety of colors/finishes; Slide covers match painted flange colors; Aluminum and brass covers shipped with black slide covers; Brass flange also available with nonmetallic brass-color slide holder; Requires a 4'' (102mm) diameter hole and overall floor depth of 1'' (25mm). Assembled with scrub water gasket. For use on tile, wood, or carpet floors.
