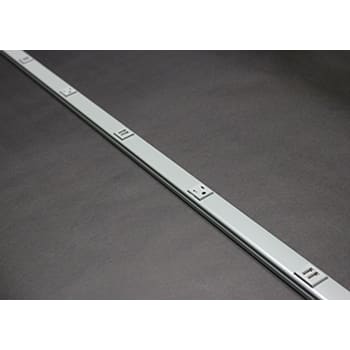

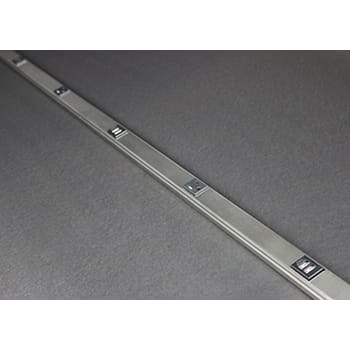

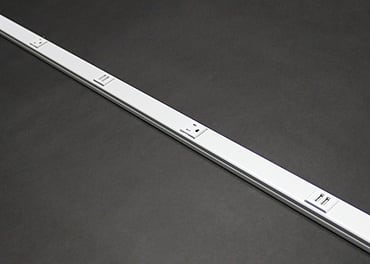

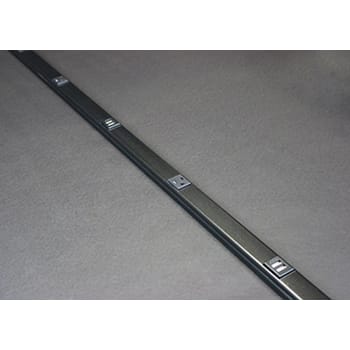

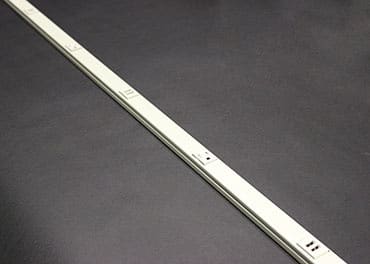

The Wiremold Co - LCAN V20GB509TRUSBA USB PLUGMOLD 5F

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 786776184464

  • Amperage - 20 Amp

  • Applications - Commercial

  • Buy American - Y

  • Catalog Number - V20GB509TRUSBA

Packaging

  • 1 ea

EAN

00786776184464

Part #

262746

Catalog #

V20GB509TRUSBA

Commercial reference

V20GB509TRUSBA

12-Digit UPC:

786776184464

Amperage:

20 Amp

Applications:

Commercial

Buy American:

Y

Catalog Number:

V20GB509TRUSBA

Country of Origin:

USA

Depths:

3/4 Inch

ERP_productname:

WALK V20GB509TRUSBA USB PLUGMOLD 5FT IV, 3 OUTLETS AND

Enclosure:

Steel

Enclosure Material:

Steel

Family Brand Name:

Legrand

Heights:

3/4 Inch

Length:

1.3 Inch

Material:

Steel

Sub Brand:

Wiremold

Type:

Plugmold

Voltage:

125 Volt

Widths:

1.3 in

SoneparProductId:

SKU_US_30006666

Available in 5' (1.5m) length with 9'' spacing. 15A tamper-resistant receptacles. 3-wire, #12 THHN (1 hot, 1 neutral and insulated ground conductor). .040'' (1.0 mm) steel housing. Packed two per carton. Each unit supplied with one (1) Coupling and two (2) Blank End Fittings. USB is 2.4 Amps (shared between two ports) 5VDC. Please note the charging load on one module will not affect the charging performance of the other USB modules in the product. Certifications: RoHS Compliant; NAFTA Compliant; cULus Listed - Features: USB charging. Dual-port charging modules share 2.4 amps of charging capacity and can charge multiple phones, tablets or other mobile devices at the same time.; Tamper-resistant receptacles. Prevents the insertion of foreign objects into receptacles reducing the risk of shocks or electrocution. Meets 2014 NEC section 406 requirements.; Multiple colors and finishes. Painted finishes of black, gray, ivory, and white, as well as anodized aluminum and stainless steel versions integrate easily with any room decor.; Compact design. Low-profile design installs in tight locations while offering multiple power and USB charging connections. Receptacle spacing accommodates bulky AC adapters.
