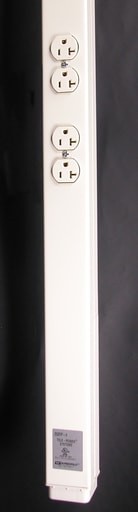

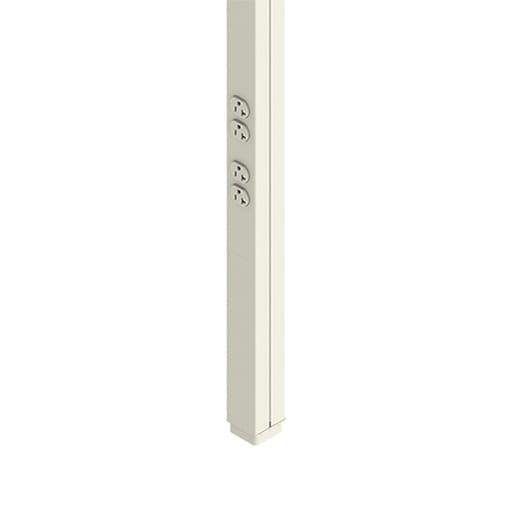

The Wiremold Co - Wiremold 25DTP-415 4.7 m 125 Volt 20 Amp Ivory Steel 2-Compartment Power and Communication Pole

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 786776046427

  • Applications - Commercial, Office

  • Buy American - Y

  • Catalog Number - 25DTP-415

  • Color - Ivory

Packaging

  • 1 ea

EAN

00786776046427

Part #

100952

Catalog #

25DTP415

Commercial reference

25DTP415

12-Digit UPC:

786776046427

Applications:

Commercial, Office

Buy American:

Y

Catalog Number:

25DTP-415

Color:

Ivory

Conductor Size:

12 AWG

Country of Origin:

USA

Depths:

2-5/16 Inch

ERP_productname:

WMLD 25DTP415 IV TELE-PWR POLE

Enclosure:

Steel

Family Brand Name:

Legrand

Finish:

Painted

Heights:

185.04 Inch

Length:

15'5"

Material:

Steel

Sub Brand:

Wiremold

Type:

Tele-Power Poles

Widths:

2.83 in

Wire Size:

12 AWG

SoneparProductId:

SKU_US_25348875

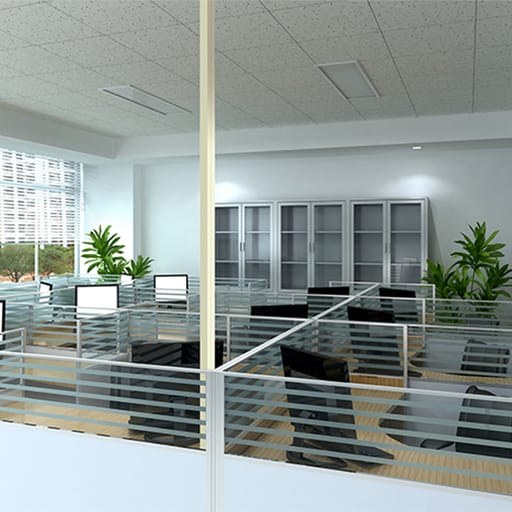

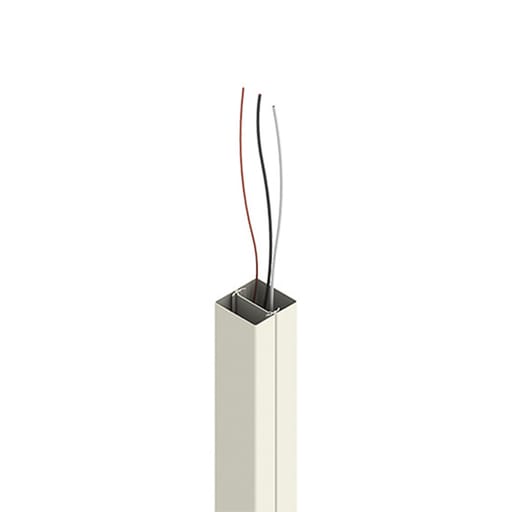

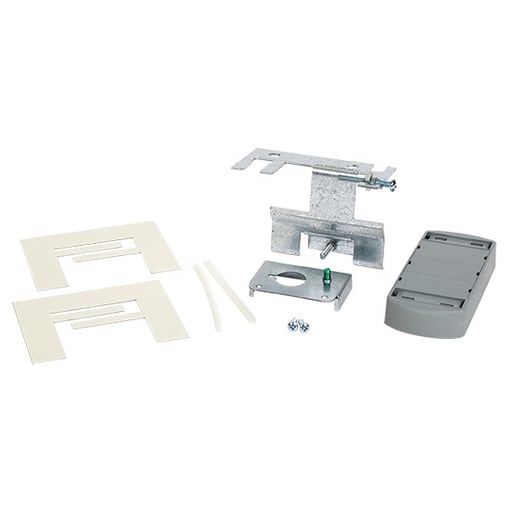

25DTP Series 10' Tele-Power Poles handle all of your needs effortlessly, whether it's power, data, or A/V wiring you need to bring down to the desk, workstation, or cash registers. The vertical drop poles give you the flexibility and capacity to devote both sides of the pole for single service or separate the two channels to provide dual service feeds. This pole comes with two(2) prewired Fed-Spec general grade duplex receptacles, 20A 125V. Knockouts provided in removable cover for RJ11/RJ45 and modular furniture communication connectors. All mounting hardware, entrance end plate, and two ceiling trim plates are included. Features: Bring power, data, and A/V services into open space environments quickly & easily. Easy to install. Reduces costs for moves, adds and changes.; Relocatable. Ready for service in 30 minutes or less. Can be quickly reconfigured or relocated as work space uses and service needs change.; Dual-channel. Allows a single drop point for access to multiple services.; Wide selection of standard options. Stocked in a variety of materials, finishes, heights, and device configurations. Provides what you want, when you need it.; Multiple color options. Available in four aesthetic colors: white, black, ivory, and gray.; Datacom connectivity options. Accepts industry standard and proprietary devices from a wide range of manufacturers to provide a seamless,aesthetically pleasing interface for voice, data, audio, and video applications at the point of use.; Pole extenders combine quick installation with easy job-site handling. Snap together 5' sections to create a pole or extend the length of your existing 25TP series pole.; Custom capabilities. Modify receptacle type and location, change color finish, alter pole heights, add fixture whips and more. Affording you more choice in appearance and configuration.; New extenders accommodate a variety of ceiling heights, can ship UPS or air freight for quick & reliable delivery. - Certifications: RoHS Compliant; NAFTA Compliant; cULus Listed
