The Wiremold Co - Wiremold 525J 4-Piece GFI Device Plate Pedestal Service Fitting

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 786564015048

  • Applications - Commercial, Office

  • Buy American - Y

  • Catalog Number - 525J

  • Color - Silver

Packaging

  • 1 ea

EAN

00786564015048

Part #

108070

Catalog #

525J

Commercial reference

525J

12-Digit UPC:

786564015048

Applications:

Commercial, Office

Buy American:

Y

Catalog Number:

525J

Color:

Silver

Construction:

Not Assembled

Country of Origin:

USA

Depths:

3 Inch

ERP_productname:

WALK 525J 1 GFI OPNG PWR SVC FTG

Family Brand Name:

Wiremold

Finish:

Brushed

Length:

4-7/16 Inch

Material:

Aluminum

Mounting Type:

Screw-On

Size:

4 7/16"L x 3 1/8"W x 3"H

Sub Brand:

Wiremold

Type:

1 GFI Opening

Widths:

3-1/8 in

SoneparProductId:

SKU_US_27113246

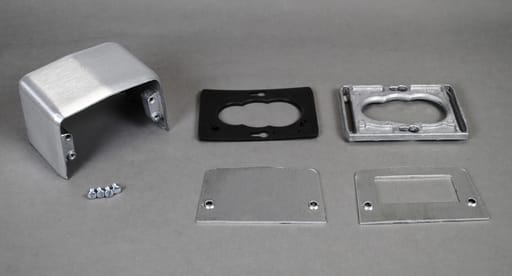

525 Series Service Fittings provide an expanded range of services to include audio/video devices. 525 Series Service Fittings. four-piece design delivers the flexibility of interchangeable faceplates and the durability to withstand multiple moves, adds and changes. These fittings can be applied to Walkerduct® Pro Series, Walkerduct® Underfloor Duct, Flushduct® and Walker 800 Series Floor Boxes. 525 Series Service Fittings are made from die-cast aluminum with a brushed satin finish. Each pedestal provides a single service, with multiple fittings required for two or more services. This line of fittings is ideal for use in schools, commercial office spaces and in labs. Features: GFI device plate one side. Blank plate other side. NOTE: Four-piece service fittings include: housing and base plate. Receptacles included when indicated in part number description. 525 Series Service Fittings have 27 cubic inches (442ml) of capacity. - Certifications: cULus Listed; RoHS Compliant
