The Wiremold Co - Wiremold AMD8ATCBK 7-1/2 x 9-3/4" Black Assembled Poke-Through Device

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 786564015727

  • Applications - Commercial

  • Catalog Number - AMD8ATCBK

  • Color - Black

  • Construction - Assembled

Packaging

  • 1 ea

EAN

00786564015727

Part #

425439

Catalog #

AMD8ATCBK

Commercial reference

AMD8ATCBK

12-Digit UPC:

786564015727

Applications:

Commercial

Catalog Number:

AMD8ATCBK

Color:

Black

Construction:

Assembled

Country of Origin:

Mexico

ERP_productname:

WALK AMD8ATCBK FLUSH POKE-THRU ASSY/BK/TC

Family Brand Name:

Legrand

Heights:

9-3/4 Inch

Material:

Aluminum

Size:

7" cover

Sub Brand:

Wiremold

Type:

Poke-Thru

Widths:

7.5 in

SoneparProductId:

SKU_US_25472817

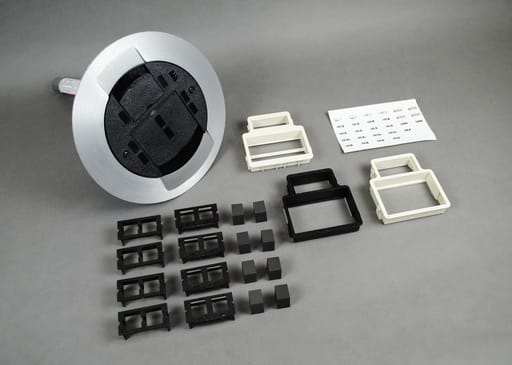

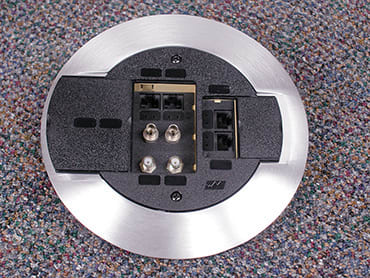

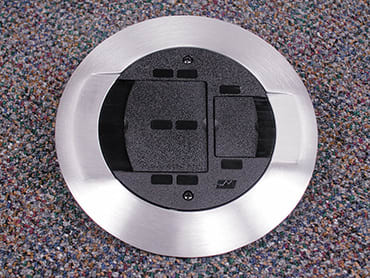

All communication device accepts up to eight UTP, fiber optic, audio, or video connectors. Finish flange available in gray (GY), black (BK), ivory (VY), brushed aluminum (AL) and brass finish (BS). Aluminum and brass flanges standard with black cover. Aluminum flange also available with an aluminum colored nonmetallic cover (AA). Brass flange also available with brass colored nonmetallic cover (AB). Includes adapters to accept eight (8) Ortronics TracJack modular jacks, four (4) Ortronics Series II modular jacks, or Wiremold Open System adapters. Modular jacks sold separately. NOTE: Assembled with scrub water gasket. For use on tile or carpet floors. AMD8 Series Poke-Thru Devices require a 4'' (102mm) diameter hole. Not designed to work with bare concrete or terrazzo. Floor covering thickness 1/8'' minimum. Features: All communication device accepts up to eight UTP, fiber optic, audio, or video connectors; Finish flange available in gray (GY), black (BK), ivory (VY), brushed aluminum (AL) and brass finish (BS); Aluminum and brass flanges standard with black cover; Aluminum flange also available with an aluminum colored nonmetallic cover (AA); Brass flange also available with brass colored nonmetallic cover (AB); Modular jacks sold separately.; NOTE: Assembled with scrub water gasket; For use on tile or carpet floors; AMD8 Series Poke-Thru Devices require a 4'' (102mm) diameter hole; Not designed to work with bare concrete or terrazzo - Certifications: RoHS Compliant; NAFTA Compliant; cULus Listed
