The Wiremold Co - Wiremold AMDTP-4 2-1/4 x 5" 10 Foot Aluminum Power and Communication Pole
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786776099515
Amperage - 2-20 Amp
Applications - For Commercial, Office use
Buy American - Y
Catalog Number - AMDTP-4
Packaging
1 ea
EAN
00786776099515
Part #
100107
Catalog #
AMDTP4
Commercial reference
AMDTP4
12-Digit UPC:
786776099515
Amperage:
2-20 Amp
Applications:
For Commercial, Office use
Buy American:
Y
Catalog Number:
AMDTP-4
Color:
Gray
Country of Origin:
USA
ERP_productname:
WMLD AMDTP4 POWER POLE
Enclosure:
Aluminum
Family Brand Name:
Wiremold
Finish:
Satin Anodized
Heights:
125 Inch
Length:
10 Foot
Material:
Aluminum
Mounting Type:
Stand (Base)
Sub Brand:
Wiremold
Type:
Rectangular, Duplex
Widths:
2.3 in
SoneparProductId:
SKU_US_25353281

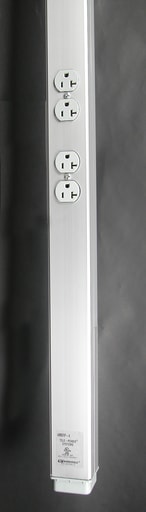

Two-compartment pole (power and communications). Nominal material thickness .050'' (1.8mm). Length: 10' 5'' (3.2m). Factory wired with 20A 125V fed-spec general grade duplex style receptacles. An opening for communication and a 1/2'' (12.7mm) hole for power is provided at top. The 8'' (203mm) cover at top front of pole is removable for making power wiring connections. Communication KOs provided for RJ11/RJ45 and modular furniture connectors. Mounting hardware, entrance end fitting, and ceiling trim plates furnished. Anodized aluminum finish. Available in standard length of 10' 5'' (3.2m), 12' 5''(3.8m), and 15' 5'' (4.7m). NOTE 1: Custom colors, other lengths (20' (6.1m) max.) or additional circuits are available on custom orders. Consult factory for more information. Can be factory- or field-wired with many commercially available devices. NOTE 2: Add the suffix ''-C'' for the cord-ended version (10' (3.0m) cord). Cord-ended version AVAILABLE IN CANADA ONLY. Features: Two-compartment pole (power and communications). Nominal material thickness .050'' (1.8mm). Length: 10' 5'' (3.2m). Factory wired with 20A 125V fed-spec general grade duplex style receptacles.; An opening for communication and a 1/2'' (12.7mm) hole for power is provided at top. The 8'' (203mm) cover at top front of pole is removable for making power wiring connections.; Communication KOs provided for RJ11/RJ45 and modular furniture connectors. Mounting hardware, entrance end fitting, and ceiling trim plates furnished. Anodized aluminum finish.; Available in standard length of 10' 5'' (3.2m), 12' 5''(3.8m), and 15' 5'' (4.7m).; Custom colors, other lengths (20' (6.1m) max.) or additional circuits are available on custom orders. Consult factory for more information. Can be factory- or field-wired with many commercially available devices.; Add the suffix ''-C'' for the cord-ended version (10' (3.0m) cord). Cord-ended version AVAILABLE IN CANADA ONLY. - Certifications: RoHS Compliant; NAFTA Compliant; cULus Listed
