The Wiremold Co - Wiremold AMDTP-412 2-1/4 x 5" 12 Foot Aluminum Power and Communication Pole
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786776088397
Applications - Commercial, Office
Buy American - Y
Catalog Number - AMDTP-412
Color - Gray
Packaging
1 ea
EAN
00786776088397
Part #
152273
Catalog #
AMDTP-412
Commercial reference
AMDTP-412
12-Digit UPC:
786776088397
Applications:
Commercial, Office
Buy American:
Y
Catalog Number:
AMDTP-412
Color:
Gray
Country of Origin:
USA
ERP_productname:
WMLD AMDTP-412 TPP ALUM 2-20A DPLX 12FT.
Enclosure:
Aluminum
Family Brand Name:
Legrand
Finish:
Aluminum
Heights:
149.86 Inch
Material:
Aluminum
Sub Brand:
Wiremold
Type:
Tele-Power Poles
Widths:
2.312 in
SoneparProductId:
SKU_US_25532784

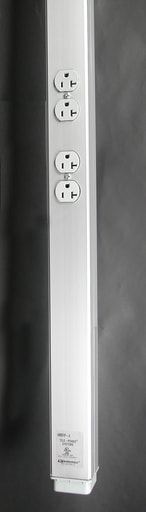

Two-compartment pole (power and communications). Nominal material thickness .050'' (1.8mm). Length: 12' 5''(3.8m. Factory wired with 20A 125V fed-spec general grade duplex style receptacles. An opening for communication and a 1/2'' (12.7mm) hole for power is provided at top. The 8'' (203mm) cover at top front of pole is removable for making power wiring connections. Communication KOs provided for RJ11/RJ45 and modular furniture connectors. Mounting hardware, entrance end fitting, and ceiling trim plates furnished. Anodized aluminum finish. Available in standard length of 10' 5'' (3.2m), 12' 5''(3.8m), and 15' 5'' (4.7m). NOTE 1: Custom colors, other lengths (20' (6.1m) max.) or additional circuits are available on custom orders. Consult factory for more information. Can be factory- or field-wired with many commercially available devices. NOTE 2: Add the suffix ''-C'' for the cord-ended version (10' (3.0m) cord). Cord-ended version AVAILABLE IN CANADA ONLY. Features: Two-compartment pole (power and communications). Nominal material thickness .050'' (1.8mm). Length: 12' 5''(3.8m. Factory wired with 20A 125V fed-spec general grade duplex style receptacles.; An opening for communication and a 1/2'' (12.7mm) hole for power is provided at top. The 8'' (203mm) cover at top front of pole is removable for making power wiring connections.; Communication KOs provided for RJ11/RJ45 and modular furniture connectors. Mounting hardware, entrance end fitting, and ceiling trim plates furnished.; Anodized aluminum finish. Available in standard length of 10' 5'' (3.2m), 12' 5''(3.8m), and 15' 5'' (4.7m). NOTE 1: Custom colors, other lengths (20' (6.1m) max.) or additional circuits are available on custom orders.; Consult factory for more information. Can be factory- or field-wired with many commercially available devices. NOTE 2: Add the suffix ''-C'' for the cord-ended version (10' (3.0m) cord). Cord-ended version AVAILABLE IN CANADA ONLY. - Certifications: RoHS Compliant; NAFTA Compliant; cULus Listed
