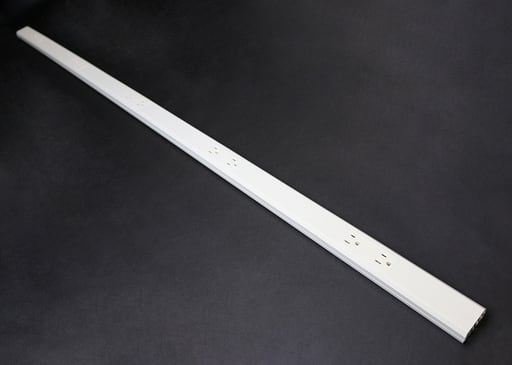

The Wiremold Co - Wiremold NM20GB512 Nonmetallic Plugmold™ Multioutlet System

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 786776519990

  • Amperage - 15 Amp

  • Applications - Commercial

  • Buy American - Y

  • Catalog Number - NM20GB512

Packaging

  • 1 ea

EAN

00786776519990

Part #

255211

Catalog #

NM20GB512

Commercial reference

NM20GB512

12-Digit UPC:

786776519990

Amperage:

15 Amp

Applications:

Commercial

Buy American:

Y

Catalog Number:

NM20GB512

Country of Origin:

USA

Depths:

1 Inch

ERP_productname:

WALK NM20GB512 PLGMD SGL CRCT 12IN. OC 5FT. NM2000

Enclosure:

Plastic

Enclosure Material:

Non-Metallic

Family Brand Name:

Legrand

Length:

1-3/4 Inch

Material:

Plastic

Sub Brand:

Wiremold

Type:

Plugmold

Voltage:

120 Volt

Widths:

1.75 in

SoneparProductId:

SKU_US_31206478

5' Plugmold Plus Multioutlet Strip comprised of five 12 inch parts, GB 15 Amp Features: Nonmetallic, lightweight with snap-on cover. Speeds installation: provides easy access to wiring for changes or additions.; Tapered profile design with textured ivory finish. Blends with surroundings in office, display space, dorm rooms and residential locations.; Full range of fittings. Facilitates easy installation of wiring for whatever the job: communication workstation outlets, receptacles, switches and more. Over lapping fittings permit neat butting to raceway.; Factory wired harness available with duplex receptacles on multiple spacings. Maximum power distribution to the point of use.; NEMA heavy duty duplex receptacles independently tested to Fed. Spec. WC596G performance criteria. Enhanced product quality ensures dependable performance.; Snapicoil harnesses of prewired receptacles in 48. and 50.. Eliminates the need for multiple splicing, speeding up installations on long runs.; Snapicoil harnesses offer a choice of receptacle spacing. Center spacing between receptacles of 12'', 18'' and 30''.; Field replaceable surge module. No need to remove the raceway cover to splice in a replacement receptacle. Field changes and maintenance are quick and easy.; Customization available. All products can be modified to accommodate virtually any application. - Certifications: RoHS Compliant; NAFTA Compliant; cULus Listed
