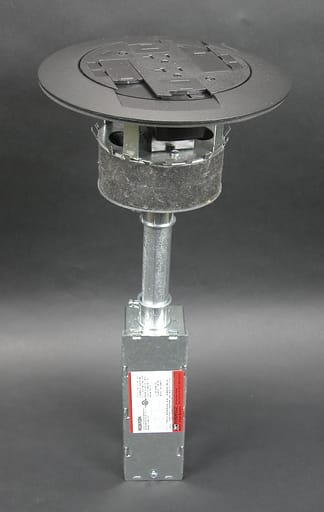

The Wiremold Co - Wiremold RC3ATCBK 7-1/2 x 16" 20 Amp Black Poke-Through Assembly

CopyCopy
The Wiremold Co - Wiremold RC3ATCBK 7-1/2 x 16" 20 Amp Black Poke-Through Assembly

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 786564067047

  • Applications - Open Space Concrete Floors Applications

  • Catalog Number - RC3ATCBK

  • Color - Black

  • Construction - Assembled

Packaging

  • 1 ea

EAN

00786564067047

Part #

248182

Catalog #

RC3ATCBK

Commercial reference

RC3ATCBK

12-Digit UPC:

786564067047

Applications:

Open Space Concrete Floors Applications

Catalog Number:

RC3ATCBK

Color:

Black

Construction:

Assembled

Country of Origin:

Mexico

Depths:

16 Inch

ERP_productname:

WALK RC3ATCBK RC3 PT W/ BK FLANGE AND BK CENTER

Family Brand Name:

Wiremold

Heights:

7-1/2 Inch

Material:

Aluminum

Size:

7" Dia.

Sub Brand:

Wiremold

Type:

RC Series Poke-Thru

Widths:

7.5 in

SoneparProductId:

SKU_US_25338790

Assembled unit. Prewired 20A duplex receptacle can be wired as a standard duplex receptacle or isolated ground. Flange available in painted gray (GY), black (BK), ivory (VY) or brushed metal finishes in aluminum (AL), and brass (BS). Slide covers match the painted flange colors: gray, black, and ivory. Aluminum and brass flanges shipped with black slide cover. Brass flange also available with nonmetallic brass colored slide holder (AB). Aluminum flange also available with nonmetallic aluminum colored slide holder (AA). Includes Wiremold Open System unloaded adapters to accept four discrete keystone connectors from most manufacturers. Unit also includes two Ortronics TracJack adapters and two Ortronics Series II adapters. Modular jacks sold separately. NOTE: Assembled with scrub water gasket. For use on tile or carpet floors. RC3 Series Poke-Thru Devices require a 4inch (102mm) diameter hole. Not designed to work with bare concrete or terrazzo. Floor covering thickness 1/8inch minimum. Certifications: RoHS Compliant; cULus Listed - Features: Assembled unit Prewired 20A duplex receptacle can be wired as a standard duplex receptacle or isolated ground; Flange available in painted gray (GY), black (BK), ivory (VY) or brushed metal finishes in aluminum (AL), and brass (BS); Slide covers match the painted flange colors: gray, black, and ivory; Aluminum and brass flanges shipped with black slide cover; Brass flange also available with nonmetallic brass colored slide holder (AB); Includes Wiremold Open System unloaded adapters to accept four discrete keystone connectors from most manufacturers; Unit also includes two Ortronics TracJack adapters and two Ortronics Series II adapters; Modular jacks sold separately; NOTE: Assembled with scrub water gasket; For use on tile or carpet floors; Not designed to work with bare concrete or terrazzo; Floor covering thickness 1/8'' minimum
