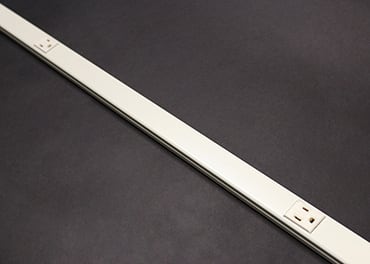

The Wiremold Co - Wiremold V20GB618 72" 18" Center Distance Ivory Steel Single Raceway Multi-Outlet Strip

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 786776093346

  • Amperage - 15 Amp

  • Applications - For Commercial, Office and Residential

  • Buy American - Y

  • Catalog Number - V20GB618

Packaging

  • 1 ea

EAN

00786776093346

Part #

100214

Catalog #

V20GB618

Commercial reference

V20GB618

12-Digit UPC:

786776093346

Amperage:

15 Amp

Applications:

For Commercial, Office and Residential

Buy American:

Y

Catalog Number:

V20GB618

Color:

Ivory

Country of Origin:

USA

Depths:

3/4 Inch

ERP_productname:

WMLD V20GB618 3W CKT PLUGMOLD

Enclosure:

Steel

Enclosure Material:

Steel

Family Brand Name:

Wiremold

Finish:

Gloss

Heights:

1-9/32 Inch

Length:

6 Foot

Material:

Steel

Mounting Type:

Screw-On

Sub Brand:

Plugmold®

Type:

Multi-Outlet Power, Rectangular, Single Receptacle, Single Circuit

Voltage:

125 Volt

Widths:

3/4 in

SoneparProductId:

SKU_US_25371446

6' Plugmold Multioutlet System with 4 single outlets 18 inches apart, GB Certifications: RoHS Compliant; NAFTA Compliant; cULus Listed - Features: Steel Raceway. Provides superior strength for any dry location installation.; Compact, low profile appearance. Requires minimal space.; Available in Ivory ScuffCoat or gray baked enamel finish. The durable ScuffCoat provides a durable, scratch-resistant finish while the gray baked enamel compliments the d.cor or can be painted.; Full range of fittings. Provides a complete wiring solution.; Single-and-dual-gang boxes. Wire devices into the raceway system or protect a Plugmold® strip with a surge or GFCI device.; Factory wired Plugmold® sections available in 3., 5., and 6. lengths with 15A receptacles installed in cover. Ideal for short runs requiring additional outlets in electrically busy areas.; Single, alternating circuit, and isolated ground receptacles. Meets virtually any job requirement.; Choice of receptacle spacing. Center spacing between receptacles of 6'', 9'', 12'', and 18''.; Snapicoil harnesses of prewired receptacles in 48. and 50.. Eliminates multiple splicing, speeding up installation on long runs.; Snapicoil harnesses offer a choice of receptacle spacing. Center spacing between receptacles of 12'', 18'' and 30''.; Customization available. All products can be modified to accommodate virtually any application.; This product meets the material restrictions of RoHS.
