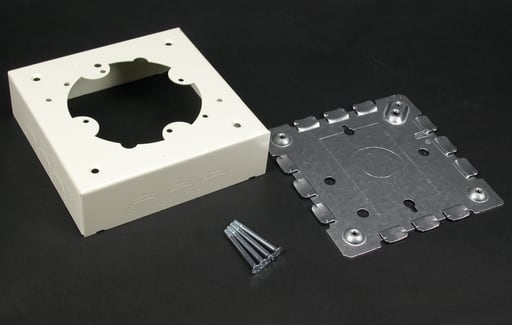

The Wiremold Co - Wiremold V5735 4-3/4 x 4-3/4 x 1-3/8" Ivory Steel 1-Channel Raceway Distribution Box

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 786776070385

  • Applications - Commercial, Office, Residential

  • Buy American - Y

  • Catalog Number - V5735

  • Color - Ivory

Packaging

  • 1 ea

EAN

00786776070385

Part #

260279

Catalog #

V5735

Commercial reference

V5735

12-Digit UPC:

786776070385

Applications:

Commercial, Office, Residential

Buy American:

Y

Catalog Number:

V5735

Color:

Ivory

Country of Origin:

USA

Depths:

1-3/8 Inch

ERP_productname:

WALK V5735 STL DISTRIBUTION BOX IVORY

Family Brand Name:

Wiremold

Length:

4-3/4 Inch

Material:

Steel

Sub Brand:

Wiremold

Type:

Roll Form

Voltage:

600 Volt

Widths:

4.75 in

SoneparProductId:

SKU_US_25508180

Twistouts permit use of three parallel raceway runs on each side. Base has 1/2'' and 1'' concentric trade size KOs and a 1 13/16'' (46mm) x 2 7/8'' (73mm) rectangular KO to mount on a one-gang in-wall outlet box. Cover accepts devices with mounting screw centers of 2 3/4'', 3 1/2'', or 4 1/16'' (70mm, 89mm, or 104mm), and canopy fixtures no larger than 4 5/8'' (117mm) in diameter. With 5736 Blank Cover, this fitting can be used as junction box, pull box, etc. NOTE: Certified to Canadian Safety Standards for sale in Canada. When ordering these products, change the ''V'' color prefix to ''VC'' to denote the Canadian versions. Certifications: NAFTA Compliant; UL Listed; RoHS Compliant - Features: Twistouts permit use of three parallel raceway runs on each side. Base has 1/2'' and 1'' concentric trade size KOs and a 1 13/16'' (46mm) x 2 7/8'' (73mm) rectangular KO to mount on a one-gang in-wall outlet box.; Cover accepts devices with mounting screw centers of 2 3/4'', 3 1/2'', or 4 1/16'' (70mm, 89mm, or 104mm), and canopy fixtures no larger than 4 5/8'' (117mm) in diameter.; With 5736 Blank Cover, this fitting can be used as junction box, pull box, etc. NOTE: Certified to Canadian Safety Standards for sale in Canada. When ordering these products, change the ''V'' color prefix to ''VC'' to denote the Canadian versions.
