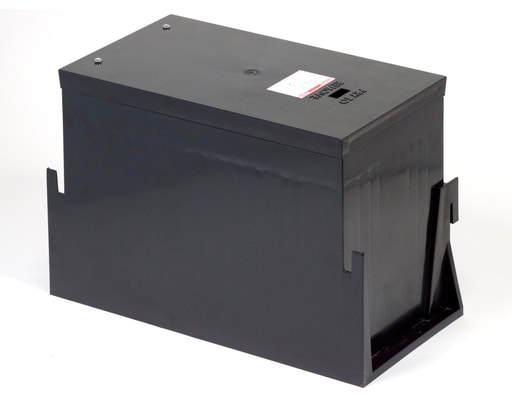

The Wiremold Co - Wiremold XB814 Outdoor Ground Box

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 786776187182

  • Applications - For Outdoor Open Spaces Grass or Concrete or Pavers

  • Catalog Number - XB814

  • Color - Black

  • Construction - Assembled

Packaging

  • 1 ea

EAN

00786776187182

Part #

140148

Catalog #

XB814

Commercial reference

XB814

12-Digit UPC:

786776187182

Applications:

For Outdoor Open Spaces Grass or Concrete or Pavers

Catalog Number:

XB814

Color:

Black

Construction:

Assembled

Country of Origin:

China

ERP_productname:

WMLD XB814 EXTERIOR GROUND BOX

Family Brand Name:

Wiremold

Heights:

10-3/4 Inch

Length:

10-3/4 Inch

Material:

Non-Metal

Mounting Type:

Bury-In-Ground

NEMA Size:

6P

Number of Gangs:

2 Gang

Sub Brand:

Wiremold

Type:

Assembled

Widths:

16 in

SoneparProductId:

SKU_US_26087241

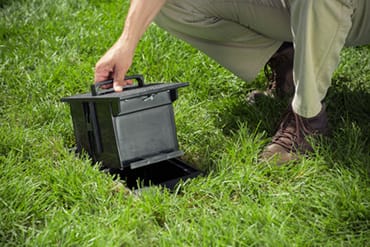

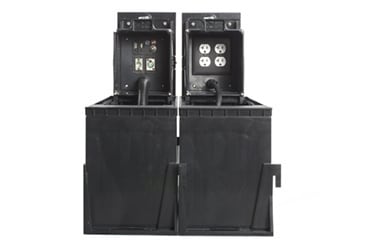

The single service 2-gang Outdoor Ground Box is made from a UV rated nonmetallic material and has been designed to withstand the harsh outdoor environments. The box can accept up to (2) 1 1/4'' trade size PVC conduit feeds. Boxes are designed to be installed separately or ganged together, for greater capacity and flexibility. They work with XB814 cover assemblies (sold separately). Features: cUL Coming Soon; Air Pocket Design . This innovative design traps and maintains an air pocket protecting the devices, plugs and connections from water, snow, and ice. Allow for safer operation year round.; UL listed to UL50E Type 6P (NEMA 6P) and IP68 requirements while in use . Tested and listed by Underwriters Laboratories, Inc. to UL2996 and UL50E for use in the ground in all weather conditions.; ADA Compliant . Meets all specifications for ADA guidelines.; Outdoor-Rated Construction . UV and chemical-resistant F1 rated nonmetallic materials, allows the box to hold up for years to come.; Holds up to 5000 lbs . Has an ANSI/SCTE 77 Tier 5 rating and can hold up to 5,000 lbs of load allowing for the occasional tractor or non-deliberate vehicular traffic.; Modular design . Boxes are designed to interlock allowing endless number of boxes in the same location. Provides service separation, everything in one location, and easier installation.; Flush to the Finished Ground . Designed to be flush with any surface, grass, dirt, walkways, patios, etc. - Certifications: cULus Listed; RoHS Compliant
