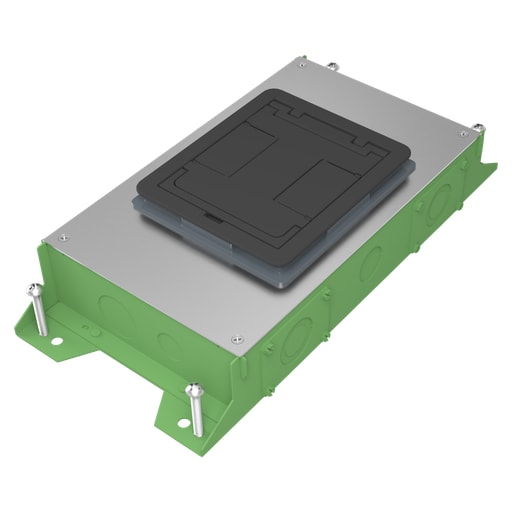

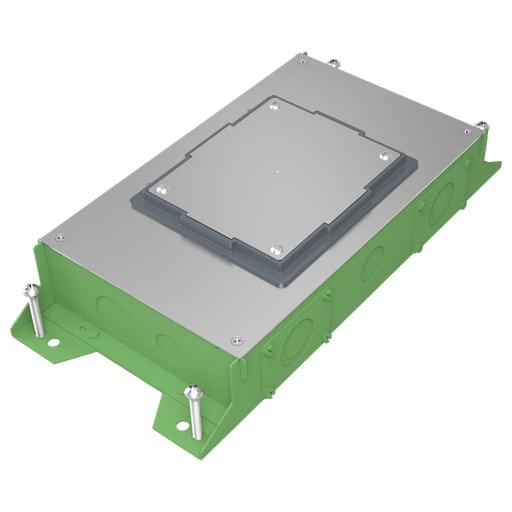

The Wiremold Co - WLK RFBA2R30OG RFBA 2G 3.0 IN RECT

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 786564105343

  • Amperage - 20 Amp

  • Applications - For Schools, Financial Institutions, Commercial Office Buildings, Hospitality and Residential

  • Catalog Number - RFBA2R30OG

  • Conductor Size - 14-10 AWG

Packaging

  • 1 ea

EAN

00786564105343

Part #

424079

Catalog #

RFBA2R30OG

Commercial reference

RFBA2R30OG

12-Digit UPC:

786564105343

Amperage:

20 Amp

Applications:

For Schools, Financial Institutions, Commercial Office Buildings, Hospitality and Residential

Catalog Number:

RFBA2R30OG

Conductor Size:

14-10 AWG

Country of Origin:

Mexico

Depths:

3 Inch

ERP_productname:

WMLD RFBA2R30OG RFBA 2-Gang Floor Box - On Grade

Family Brand Name:

Wiremold

Heights:

3.28 Inch

Knockout Size:

2 in

Length:

17-3/4 Inch

Material:

Steel

Number of Gangs:

2 Gang

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Sub Brand:

Wiremold

Type:

Indoor, On Grade

Voltage:

125 Volt

Your go-to floor box just got better. Resource RFB Series Floor Boxes are designed for maximum efficiency throughout an entire building, bringing versatile recessed activations for power and data services to open space areas or directly to workstations. No matter what size you choose, components and accessories work across the entire line interchangeably. Simply mix-and-match as needed for your project. Improved wire and cable routing makes wire pulling much easier in adjacent compartments and around corners. Available in 2-, 4-, 6- and 10-gang models with a variety of covers, colors and profiles.* Installs in tile, stone, carpet, terrazzo, wood and polished concrete. Perfect for many applications, including schools, financial institutions, commercial office buildings, hospitality and residential. Features: One consistent design: Mix-and-match Resource RFBA Series Floor Boxes of any size with interchangeable components. Makes every project installation quick and efficient.; Universal sized conduit feed: Meets all requirements for each box. 2- and 4-gang shallow boxes accept a 1.. conduit feed, while all standard boxes accept a 2.. conduit feed.; Improved wire and cable routing: Allows for easier wire pulling in adjacent compartments and around corners, reducing the overall cost for most cabling requirements.; Two finishes: Every box configuration is available in either a standard zinc-plated construction or a lightweight ..slab-on-grade.. finish with fusion-bonded epoxy corrosion resistant paint.; Removable dividers post-pour: Fully adjustable before and after the concrete pour.; Adapts to most power and communication needs: Common mounting plates can be used for any of the Resource RFB Series Floor Boxes. Reduces overall life cycle cost. - Certifications: cULus Listed; RoHS Compliant; NAFTA Compliant
